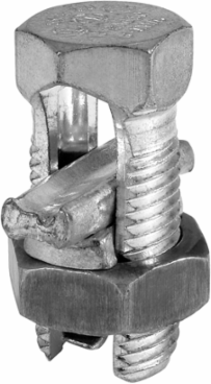

ILSCO SK-1/0-B2 Copper Split Bolt, Conductor Range for Equal Main & Tap 1/0-6 Sol, Tin Plated, UL, CSA, Bag of 2
- MPN: SK-1/0-B2
- PPN: ILC-SK-1/0-B2
CAD
$53.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 1/0-6 Sol, Tin Plated, UL, CSA, Bag of 2
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 0.3378 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 7/8, 3/4
- Height BX (IN)
- 2.75
- Width BX (IN)
- 6
Drive Type MainExternal Hex
Weight BX (LB)8.6921
Wire Diameter Range Primary (IN)0.162 - 0.375
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 460C
- UL File Number
- E6207
CSA StandardC22.2 No. 188, C22.2 No. 65
RUS ListedYes
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 8 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 8 Str
- Conductor Range for Equal Run & Tap Str
- 1/0 Str - 6 Str
- Conductor Range AL Solid (Primary, run, main, line)
- 8 Sol
Conductor Range CU Solid (Secondary, tap, load)8 Sol
Conductor Range CU Stranded (Secondary, tap, load)1/0 Str - 8 Str
Conductor Range for Equal Run & Tap Sol8 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 2
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedNo
UPC Code78366981922
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque385
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
