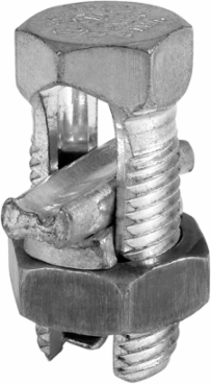

ILSCO SK-1000 Copper Split Bolt, Conductor Range for Equal Main & Tap 1000-350, Tin Plated, UL, CSA
- MPN: SK-1000
- UPC: 783669819175
- PPN: ILC-SK-1000
CAD
$1023.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 1000-350, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 4 in | 101.6 mm
- Weight
- 0.90563410325539 lbs
Length2.959 in | 75.1586 mm
Width2.563 in | 65.1002 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 2-1/4, 2-1/2
- Height BX (IN)
- 2.75
- Length (mm)
- 75.1586
- Width BX (IN)
- 4
- Wire Diameter Range Primary (IN)
- 0.682 - 1.162
Drive Type MainExternal Hex
Height (mm)101.6
Weight BX (LB)3.2224
Width (mm)65.1002
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 1000 kcmil - 350 kcmil
- Conductor Range for Equal Run & Tap ACSR
- 900 ACSR - 300 ACSR
- Conductor Range for Minimum Tap with Maximum Run
- 4/0 Str
Conductor Range CU Stranded (Secondary, tap, load)1000 kcmil - 350 kcmil
Conductor Range for Equal Run & Tap Str1000 kcmil - 350 kcmil
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366981917
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque1100
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
