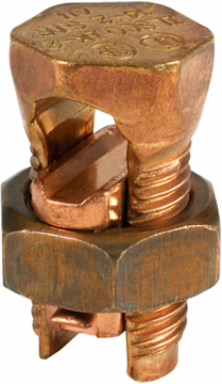

ILSCO IK-1000 Copper Split Bolt, Conductor Range for Equal Main & Tap 1000-500, UL, CSA
- MPN: IK-1000
- UPC: 783669470260
- PPN: ILC-IK-1000
CAD
$292.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 1000-500, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 2.4631 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 2-1/2, 2-1/4
- Height BX (IN)
- 2.75
- Width BX (IN)
- 4
Drive Type MainExternal Hex
Weight BX (LB)2.5991
Wire Diameter Range Primary (IN)0.815 - 1.153
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 1000 kcmil - 500 kcmil
Conductor Range for Minimum Tap with Maximum Run8 Sol
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366947026
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque1100
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
