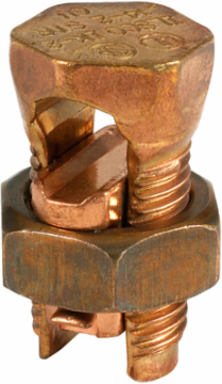

Ilsco IK-250 Copper Split Bolt, Conductor Range for Equal Main & Tap 250-1/0 Sol, UL, CSA
Ilsco IK-250 Copper Split Bolt, Conductor Range for Equal Main & Tap 250-1/0 Sol, UL, CSA
- MPN: IK-250
- UPC: 0783669470185
- PPN: ILC-IK-250
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$50.85/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1-5/16, 1
- Height BX (IN)
- 3.75
- Width BX (IN)
- 6
Drive Type MainExternal Hex
Weight BX (LB)7.937
Wire Diameter Range Primary (IN)0.325 - 0.575
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Listed
CSA StandardC22.2 No. 65, C22.2 No. 188
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 250 kcmil - 2/0 Str
- Max Conductor Copperweld - Str
- 7 No. 5
Conductor Range for Minimum Tap with Maximum Run10 Sol
Rebar Size(s) Main#4 (1/2)
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 20
Dual RatedNo
UPC Code78366947018
Specifications
- Height
- 1.31 in
- Weight
- 0.39 lbs
Length2.08 in
Width1.52 in
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque650
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
