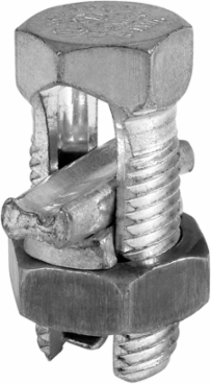

ILSCO SK-250 Copper Split Bolt, Conductor Range for Equal Main & Tap 250-4, Tin Plated, UL, CSA
- MPN: SK-250
- UPC: 783669819120
- PPN: ILC-SK-250
CAD
$77.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 250-4, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.31 in
- Weight
- 0.435 lbs
Length2.33 in
Width1.52 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1, 1-5/16
- Height BX (IN)
- 3.75
- Width BX (IN)
- 6
Drive Type MainExternal Hex
Weight BX (LB)8.7768
Wire Diameter Range Primary (IN)0.232 - 0.575
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 250 kcmil - 4 Str
- Conductor Range for Equal Run & Tap ACSR
- 4/0 ACSR - 4 ACSR
- Conductor Range for Equal Run & Tap Sol
- 4/0 Sol - 3 Sol
- Max Conductor Copperweld - Str
- 7 No. 5
Conductor Range CU Stranded (Secondary, tap, load)250 kcmil - 4 Str
Conductor Range for Equal Run & Tap Str250 kcmil - 4 Str
Conductor Range for Minimum Tap with Maximum Run4 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 20
Dual RatedNo
UPC Code78366981912
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque650
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
