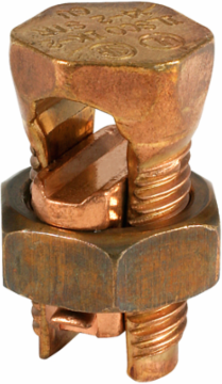

Ilsco IK-3/0 Copper Split Bolt, Conductor Range for Equal Main & Tap 3/0-2 Sol, UL, CSA
Ilsco IK-3/0 Copper Split Bolt, Conductor Range for Equal Main & Tap 3/0-2 Sol, UL, CSA
- MPN: IK-3/0
- UPC: 0783669470161
- PPN: ILC-IK-3/0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$39.04/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1-1/8, 7/8
- Height BX (IN)
- 3.75
- Width BX (IN)
- 6
Drive Type MainExternal Hex
Weight BX (LB)7.4775
Wire Diameter Range Primary (IN)0.258 - 0.470
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range for Equal Run & Tap Str
- 3/0 Str - 1 Str
- Conductor Range for Minimum Tap with Maximum Run
- 12 Sol
Conductor Range for Equal Run & Tap Sol2/0 Sol - 2 Sol
Max Conductor Copperweld - Str7 No. 7
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedNo
UPC Code78366947016
Specifications
- Height
- 1.13 in
- Weight
- 0.287 lbs
Length2 in
Width1.3 in
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque500
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
