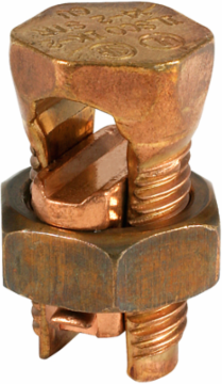

Copper Split Bolt, Conductor Range for Equal Main & Tap 500-250, UL, CSA
ILSCO

ILSCO IK-500 Copper Split Bolt, Conductor Range for Equal Main & Tap 500-250, UL, CSA

  • MPN: IK-500
  • UPC: 783669470222
  • PPN: ILC-IK-500

CAD

$122.33

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Copper Split Bolt, Conductor Range for Equal Main & Tap 500-250, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height
1.81 in
Weight
0.831 lbs
Length3 in
Width2.09 in

Voltage

Voltage Rating
35 kV

Dimensions

Drive Size Main
1-5/8, 1-13/16
Height BX (IN)
2.25
Width BX (IN)
4.375
Drive Type MainExternal Hex
Weight BX (LB)0.9769
Wire Diameter Range Primary (IN)0.575 - 0.815

Testing Standards

CSA File Number
LR-701570
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207

Additional Class Attributes

Connection
Mechanical
Number of Poles
1
Number of Conductors1

Material and Finish

Conductor Material
Copper
MaterialCopper

Conductor Ranges

Conductor Range for Equal Run & Tap Str
500 kcmil - 250 kcmil
Max Conductor Copperweld - Str
19 No. 6
Conductor Range for Minimum Tap with Maximum Run8 Sol
Rebar Size(s) Main#6 (3/4)

Additional Technical Specifications

Conductor Type
Stranded, Solid

General

Bag Quantity
1
Direct Burial
Yes
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366947022

Bolt and Screw Sizes

Number of Wire Binding Screws per Port
1
Wire Binding Torque825

Color

Color
Copper

Environment and Temperature

Temperature Rating
90°C
