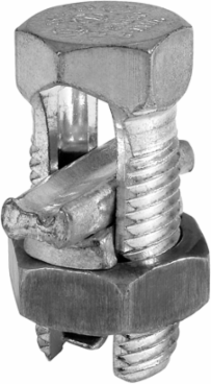

Ilsco SK-500 Copper Split Bolt, Conductor Range for Equal Main & Tap 500-3/0, Tin Plated, UL, CSA
Ilsco SK-500 Copper Split Bolt, Conductor Range for Equal Main & Tap 500-3/0, Tin Plated, UL, CSA
- MPN: SK-500
- UPC: 0783669819168
- PPN: ILC-SK-500
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$173.18/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1-5/8, 1-13/16
- Height BX (IN)
- 2.25
- Width BX (IN)
- 4.375
Drive Type MainExternal Hex
Weight BX (LB)1.1094
Wire Diameter Range Primary (IN)0.447 - 0.815
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil - 3/0 Str
- Conductor Range for Equal Run & Tap ACSR
- 477 ACSR - 2/0 ACSR
- Conductor Range for Equal Run & Tap Sol
- 4/0 Sol
- Max Conductor Copperweld - Str
- 19 No. 6
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 3/0 Str
Conductor Range for Equal Run & Tap Str500 kcmil - 3/0 Str
Conductor Range for Minimum Tap with Maximum Run1/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366981916
Specifications
- Height
- 1.81 in
- Weight
- 0.963 lbs
Length3 in
Width2.09 in
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque825
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
