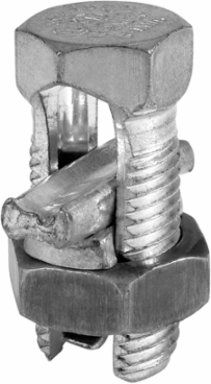

ILSCO SK-750 Copper Split Bolt, Conductor Range for Equal Main & Tap 750-250, Tin Plated, UL, CSA
- MPN: SK-750
- UPC: 783669819151
- PPN: ILC-SK-750
CAD
$720.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 750-250, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Weight
- 1.9802 lbs
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1-15/16, 2-1/8
- Height BX (IN)
- 2.75
- Width BX (IN)
- 4
Drive Type MainExternal Hex
Weight BX (LB)2.1162
Wire Diameter Range Primary (IN)0.563 - 0.999
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 750 kcmil - 3/0 Str
- Conductor Range for Equal Run & Tap ACSR
- 666.6 ACSR - 4/0 ACSR
- Conductor Range for Minimum Tap with Maximum Run
- 2/0 Str
Conductor Range CU Stranded (Secondary, tap, load)750 kcmil - 3/0 Str
Conductor Range for Equal Run & Tap Str750 kcmil - 250 kcmil
Max Conductor Copperweld - Str19 No. 5
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366981915
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque1000
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
