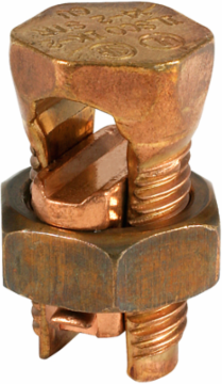

Copper Split Bolt, Conductor Range for Equal Main & Tap 750-350, UL, CSA
ILSCO

ILSCO IK-750 Copper Split Bolt, Conductor Range for Equal Main & Tap 750-350, UL, CSA

  • MPN: IK-750
  • UPC: 783669470246
  • PPN: ILC-IK-750

CAD

$222.94

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Copper Split Bolt, Conductor Range for Equal Main & Tap 750-350, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height
2.13 in
Weight
1.539 lbs
Length3.75 in
Width2.45 in

Voltage

Voltage Rating
35 kV

Dimensions

Drive Size Main
1-15/16, 2-1/8
Height BX (IN)
2.25
Width BX (IN)
4.875
Drive Type MainExternal Hex
Weight BX (LB)4.724
Wire Diameter Range Primary (IN)0.682 - 0.999

Testing Standards

CSA File Number
LR-701570
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207

Additional Class Attributes

Connection
Mechanical
Number of Poles
1
Number of Conductors1

Material and Finish

Conductor Material
Copper
MaterialCopper

Conductor Ranges

Conductor Range for Equal Run & Tap Str
750 kcmil - 350 kcmil
Max Conductor Copperweld - Str
19 No. 5
Conductor Range for Minimum Tap with Maximum Run8 Sol

Additional Technical Specifications

Conductor Type
Solid, Stranded

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366947024

Bolt and Screw Sizes

Number of Wire Binding Screws per Port
1
Wire Binding Torque1000

Color

Color
Copper

Environment and Temperature

Temperature Rating
90°C
