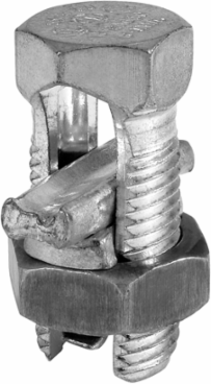

ILSCO SK-8 Copper Split Bolt, Conductor Range for Equal Main & Tap 8-16, Tin Plated, UL, CSA
- MPN: SK-8
- UPC: 783669818994
- PPN: ILC-SK-8
CAD
$11.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 8-16, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.84 in | 21.336 mm
- Weight
- 0.0105075460765027 lbs
Length0.577 in | 14.6558 mm
Width0.577 in | 14.6558 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 3/8, 1/2
- Height BX (IN)
- 2.25
- Length (mm)
- 14.6558
- Width BX (IN)
- 5
- Wire Diameter Range Primary (IN)
- 0.057 - 0.145
Drive Type MainExternal Hex
Height (mm)21.336
Weight BX (LB)3.9
Width (mm)14.6558
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 460C
- UL File Number
- E6207
CSA StandardC22.2 No. 188, C22.2 No. 65
RUS ListedYes
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 8 Str - 14 Str
- Conductor Range for Equal Run & Tap Sol
- 8 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)8 Str - 14 Str
Conductor Range for Equal Run & Tap Str8 Str - 16 Str
Conductor Range for Minimum Tap with Maximum Run16 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366981899
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque80
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
