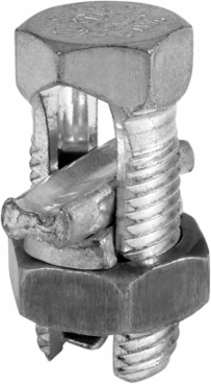

ILSCO SK-2 Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 2-8 Sol, Tin Plated, UL, CSA
- MPN: SK-2
- UPC: 783669819069
- PPN: ILC-SK-2
CAD
$23.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 2-8 Sol, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.81 in
- Weight
- 0.13 lbs
Length1.55 in
Width0.93 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 11/16, 13/16
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Drive Type MainExternal Hex
Weight BX (LB)7.7981
Wire Diameter Range Primary (IN)0.128 - .316
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 460C
- UL File Number
- E6207
CSA StandardC22.2 No. 188, C22.2 No. 65
RUS ListedYes
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 8 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 2 Str - 8 Str
- Conductor Range CU Solid (Secondary, tap, load)
- 8 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 2 Str - 8 Str
- Conductor Range for Equal Run & Tap Str
- 2 Str - 6 Str
- Conductor Range for Minimum Tap with Maximum Run
- 8 Sol
- Max Conductor Copperweld - Str
- 3 No. 7
Conductor Range AL Stranded (Primary, run, main, line)2 Str - 8 Str
Conductor Range CU Solid (Primary, run, main, line)8 Sol
Conductor Range CU Stranded (Primary, run, main, line)2 Str - 8 Str
Conductor Range for Equal Run & Tap ACSR2 ACSR - 6 ACSR
Conductor Range for Equal Run & Tap Sol2 Sol - 8 Sol
Conductor Range AL Solid (Primary, run, main, line)8 Sol
Max Conductor Copperweld - Type A3A
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedYes
UPC Code78366981906
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque275
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
