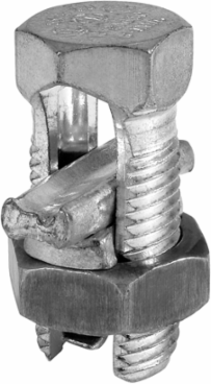

ILSCO SK-4 Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 6-10, Tin Plated, UL, CSA
- MPN: SK-4
- UPC: 783669819021
- PPN: ILC-SK-4
CAD
$15.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 6-10, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.69 in
- Weight
- 0.078 lbs
Length1.27 in
Width0.79 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 11/16, 9/16
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Drive Type MainExternal Hex
Weight BX (LB)9.147
Wire Diameter Range Primary (IN)0.116 - 0.184
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Copper, Aluminum
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 6 Str - 10 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 6 Str - 10 Str
- Conductor Range for Equal Run & Tap ACSR
- 6 ACSR
- Conductor Range for Equal Run & Tap Sol
- 6 Sol - 8 Sol
- Max Conductor Copperweld - Str
- 3 No. 12
Conductor Range AL Stranded (Primary, run, main, line)6 Str - 10 Str
Conductor Range CU Solid (Secondary, tap, load)10 Sol
Conductor Range CU Stranded (Secondary, tap, load)6 Str - 10 Str
Conductor Range for Equal Run & Tap Str6 Str - 10 Str
Conductor Range for Minimum Tap with Maximum Run10 Sol
Max Conductor Copperweld - Type A8A
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedYes
UPC Code78366981902
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque165
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
