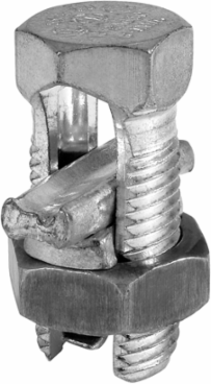

ILSCO SK-6 Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 8-14, Tin Plated, UL, CSA
- MPN: SK-6
- UPC: 783669819007
- PPN: ILC-SK-6
CAD
$13.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Split Bolt, Dual Rated, Conductor Range for Equal Main & Tap 8-14, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.63 in
- Weight
- 0.056 lbs
Length1.11 in
Width0.72 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Size Main
- 1/2, 5/8
- Height BX (IN)
- 2
- Width BX (IN)
- 6.1875
Drive Type MainExternal Hex
Weight BX (LB)6.047
Wire Diameter Range Primary (IN)0.073 - 0.146
Testing Standards
- CSA File Number
- LR-701570
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors1
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Copper
- Wire Binding Hardware Material
- Copper
Connector FinishTin
Wire Binding Hardware FinishTin
Conductor Ranges
- Conductor Range AL Solid (Secondary, tap, load)
- 10 Sol - 14 Sol
- Conductor Range AL Stranded (Secondary, tap, load)
- 8 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 8 Str - 14 Str
- Conductor Range for Equal Run & Tap ACSR
- 8 ACSR
- Conductor Range for Equal Run & Tap Sol
- 10 Sol - 14 Sol
Conductor Range AL Stranded (Primary, run, main, line)8 Str - 14 Str
Conductor Range CU Solid (Secondary, tap, load)10 Sol - 14 Sol
Conductor Range CU Stranded (Secondary, tap, load)8 Str - 14 Str
Conductor Range for Equal Run & Tap Str8 Str - 14 Str
Conductor Range for Minimum Tap with Maximum Run14 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedYes
UPC Code78366981900
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 1
Wire Binding Torque165
Color
- Color
- Silver
Environment and Temperature
- Temperature Rating
- 90°C
