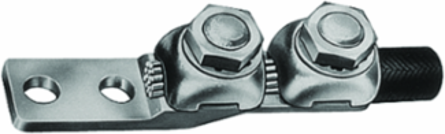

Burndy QA442N Copper Terminal, Heavy Duty, 2 Hole, 850-1000 kcmil, 1/2 Inch Stud, 1-3/4 Inch Hole Spacing
- MPN: QA442N
- UPC: 781810317808
- PPN: BUR-353780
CAD
$637.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, Heavy Duty, 2 Hole, 850-1000 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, 1 Screw.
Features
- Features: Type QA Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar
Documentation & Downloads
Specifications
Key Specifications
- Application
- For Copper Cable
- Installation Torque Recommended in-lb
- 500 LBS/in
- Physical Attribute - Number of Holes
- 2
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plating Type
- Unplated
- Temperature Rating
- 194
- Type
- Bolted Lugs & Terminals
- UPC 12 Digit
- 7818103178088

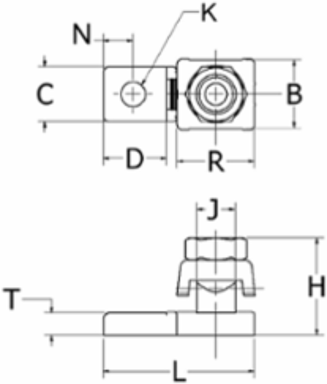

- Dimension - F Width Center to Center inch
- 1.75 in
- Dimension - Height inch
- 2.50 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 125 mm
- Dimension - N inch
- 0.62 in
- Dimension - Stud Size inch
- 1/2
- Conductor - Copper Str Navy Size
- 1000 (127) Navy
- Conductor - Copper Str Size
- 850 kcmil;1000 kcmil
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- EX
Connector TypeTerminal
MaterialCopper
Physical Attribute - Number of Screws1
PlatedN
Sub BrandQIKLUG
Trade NameQIKLUG™
UPC781810317808
Dimension - D inch3.00 in
Dimension - Height fraction5/2 in
Dimension - Hole Size fraction9/16
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch4.94 in
Dimension - Pad Width inch1.88 in
Rating - Minimum Voltage600
Conductor - Copper Str Navy Size Range1000 (127) Navy
Conductor - Copper Str Size Range850 kcmil-1000 kcmil
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
