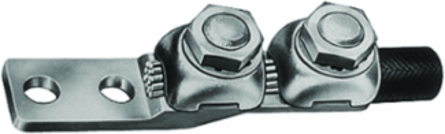

Burndy QA282B Heavy Duty Copper Terminal, 3/0-4/0 AWG, 3/8 Inch Stud, 1 Inch Hole Spacing
- MPN: QA282B
- UPC: 781810314920
- PPN: BUR-353492
CAD
$178.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, Heavy Duty, 2 Hole, 3/0-4/0 AWG (Str), 3/8" Stud, 1" Stud Hole Spacing, 1 Screw.
Features
- Features: Type QA Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar
Documentation & Downloads
Specifications
Key Specifications
| Application | For Copper Cable |
|---|---|
| Installation Torque Recommended in-lb | 250 LBS/in |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Temperature Rating | 194 |
| Type | Bolted Lugs & Terminals |
| UPC 12 Digit | 7818103149200 |

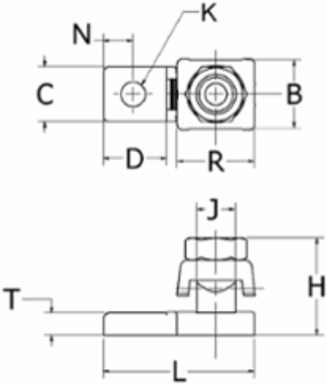

| Dimension - B Length inch | 1.03 in |
| Dimension - F Width Center to Center inch | 1.00 in |
| Dimension - Height inch | 1.31 in |
| Dimension - Hole Size inch | 0.41 in |
| Dimension - L Length Overall mm | 81 mm |
| Dimension - N inch | 0.44 in |
| Dimension - Stud Size inch | 3/8 |
| Conductor - Copper Str Navy Size | 150 (61) Navy;200 (61) Navy |
| Conductor - Copper Str Size | 3/0 AWG;4/0 AWG |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | EX |
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Sub Brand | QIKLUG |
| Trade Name | QIKLUG™ |
| UPC | 781810314920 |
| Dimension - B Length fraction | 1-1/33 in |
| Dimension - D inch | 2.00 in |
| Dimension - Height fraction | 1-9/29 in |
| Dimension - Hole Size fraction | 13/32 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 3.19 in |
| Dimension - Pad Width inch | 1.00 in |
| Rating - Minimum Voltage | 600 |
| Conductor - Copper Str Navy Size Range | 150 (61) Navy-200 (61) Navy |
| Conductor - Copper Str Size Range | 3/0 AWG-4/0 AWG |
| Certification - ETL | No |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
