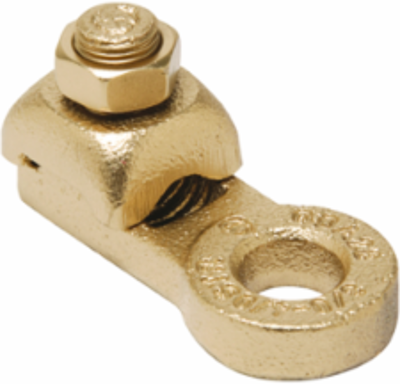

Burndy QDA31 Copper Terminal, 1 Hole, 250-350 kcmil, 5/8 Inch Stud, 1 Screw, Hex Bolt
- MPN: QDA31
- UPC: 781810325407
- PPN: BUR-358540
CAD
$387.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, 1 Hole, 250-350 kcmil, 5/8" Stud, 1 Screw.
Features

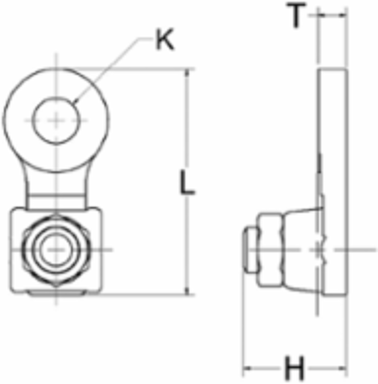

- Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Studs, Provides Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation, Stud/bolt Hole Size: 5/8 IN, Dimension K: 11/16 IN, Dimension T: 5/16 IN, Conductor Type: Run: Navy, Commercial Stranded Copper, Tongue Width: 1-1/2 IN, Height: 1-11/16 IN, Length: 3 IN, Installation Torque: 325 IN-LB
Documentation & Downloads
Specifications
Key Specifications
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
|---|---|
| Installation Torque Recommended in-lb | 325 LBS/in |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Trade Name | QIKLUG™ |
| UPC | 781810325407 |
| Dimension - Height inch | 1.69 in |
| Dimension - Hole Size inch | 0.69 in |
| Dimension - L Length Overall mm | 86 mm |
| Dimension - Pad Width inch | 1.50 in |
| Dimension - Width inch | 1.50 in |
| Conductor - Copper Str Navy Size | 250 (61) Navy;300 (91) Navy;350 (91) Navy |
| Conductor - Copper Str Size | 250 kcmil;300 kcmil;350 kcmil |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | EX |
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Sub Brand | QIKLUG |
| Type | Bolted Lugs & Terminals |
| Dimension - Height fraction | 1-11/16 in |
| Dimension - Hole Size fraction | 11/16 |
| Dimension - Hole Size mm | 18 mm |
| Dimension - Length Overall inch | 3.00 in |
| Dimension - Stud Size inch | 5/8 |
| Dimension - Width mm | 38 mm |
| Conductor - Copper Str Navy Size Range | 250 (61) Navy-350 (91) Navy |
| Conductor - Copper Str Size Range | 250 kcmil-350 kcmil |
| Certification - ETL | No |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
