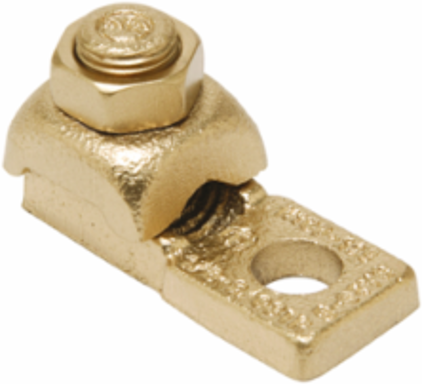

Burndy QA44B Copper Terminal, Heavy Duty, 850-1000 kcmil, 5/8 Inch Stud, 1 Hole, 2-1/2 Inch Height
- MPN: QA44B
- UPC: 781810317563
- PPN: BUR-353756
CAD
$558.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, Heavy Duty, 1 Hole, 850-1000 kcmil, 5/8" Stud, 1 Screw.
Features

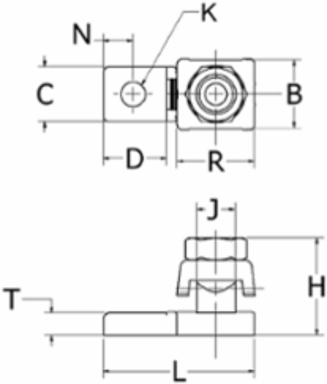

- Features: Type QA Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Fast One Wrench Installation, Number Of Clamping Elements: 1, Dimension N: 1 IN, Dimension K: 11/16 IN, Stud/bolt Hole Size: 5/8 IN, Dimension D: 2 IN, Dimension T: 1/2 IN, Conductor Type: Run: Commercial Stranded Copper, Navy Copper, Tongue Width: 1-7/8 IN, Height: 2-3/4 IN, Installation Torque: 500 IN-LB, Length: 3-15/16 IN
Documentation & Downloads
Specifications
Key Specifications
| Application | For Joining A Wide Range Of Copper Cable To Equipment Pads Or Bars |
|---|---|
| Installation Torque Recommended in-lb | 500 LBS/in |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Trade Name | QIKLUG™ |
| UPC | 781810317563 |
| Dimension - Height fraction | 2-1/2 |
| Dimension - Hole Size fraction | 11/16 |
| Dimension - Hole Size mm | 18 mm |
| Dimension - Length Overall inch | 3.94 in |
| Dimension - Pad Width inch | 1.88 in |
| Dimension - Width mm | 48 mm |
| Conductor - Copper Str Navy Size | 1000 (127) Navy |
| Conductor - Copper Str Size | 900 kcmil;1000 kcmil |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | EX |
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Sub Brand | QIKLUG |
| Type | Bolted Lugs & Terminals |
| Dimension - D inch | 2.00 in |
| Dimension - Height inch | 2.50 in |
| Dimension - Hole Size inch | 0.69 in |
| Dimension - L Length Overall mm | 100 mm |
| Dimension - N inch | 1 in |
| Dimension - Stud Size inch | 5/8 |
| Weight | 1.7 lb |
| Conductor - Copper Str Navy Size Range | 1000 (127) Navy |
| Conductor - Copper Str Size Range | 850 kcmil-1000 kcmil |
| Certification - ETL | No |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
