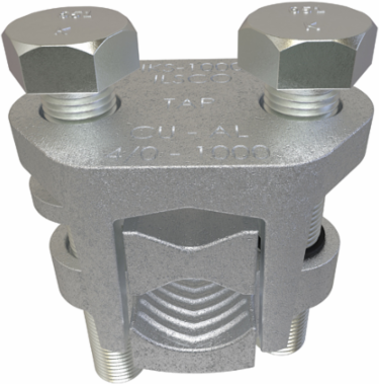

ILSCO IKS-1000 Copper Two-Bolt Split Bolt, Main Conductor Range 1000-500, Tap Range 1000-4/0, Tin Plated, UL
- MPN: IKS-1000
- UPC: 783669490084
- PPN: ILC-IKS-1000
CAD
$885.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Two-Bolt Split Bolt, Main Conductor Range 1000-500, Tap Range 1000-4/0, Tin Plated, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 4.14 in | 105.156 mm
- Weight
- 0.29452260504729 lbs
Length3.072 in | 78.0288 mm
Width2.025 in | 51.435 mm
Dimensions
- Drive Type Main
- External Hex
- Height (mm)
- 105.156
- Width BX (IN)
- 4.875
Height BX (IN)2.25
Length (mm)78.0288
Width (mm)51.435
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors2
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 1000 kcmil - 500 kcmil
Conductor Range CU Stranded (Secondary, tap, load)1000 kcmil - 4/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 1
Dual RatedNo
UPC Code78366949008
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 2
Color
- Color
- Copper
