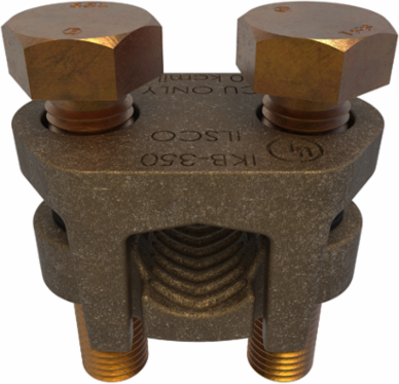

ILSCO IKB-350 Copper Two-Bolt Split Bolt, Main Conductor Range 350-250, Tap Range 350-10, UL
- MPN: IKB-350
- UPC: 783669480023
- PPN: ILC-IKB-350
CAD
$283.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Two-Bolt Split Bolt, Main Conductor Range 350-250, Tap Range 350-10, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.575 in | 65.405 mm
- Weight
- 0.743 lbs
Length2.144 in | 54.4576 mm
Width1.374 in | 34.8996 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Type Main
- External Hex
- Height (mm)
- 65.405
- Width BX (IN)
- 6
Height BX (IN)2.75
Length (mm)54.4576
Width (mm)34.8996
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL Control Number
- 453G
- UL File Number
- E6207
RUS ListedYes
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors2
Material and Finish
- Conductor Material
- Copper
MaterialCopper
Conductor Ranges
- Conductor Range CU Solid (Secondary, tap, load)
- 10 Sol
- Conductor Range CU Stranded (Secondary, tap, load)
- 350 kcmil - 10 Str
Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 250 kcmil
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 12
Dual RatedNo
UPC Code78366948002
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 2
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
