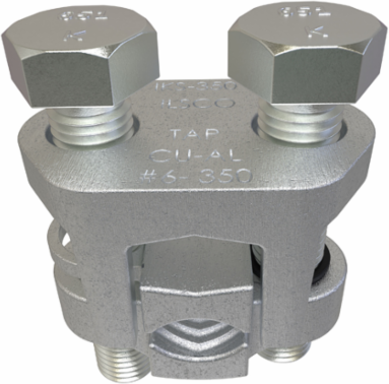

ILSCO IKS-350 Copper Two-Bolt Split Bolt, Main Conductor Range 350-250, Tap Range 350-6, Tin Plated, UL

Copper Two-Bolt Split Bolt, Main Conductor Range 350-250, Tap Range 350-6, Tin Plated, UL

ILSCO IKS-350 Copper Two-Bolt Split Bolt, Main Conductor Range 350-250, Tap Range 350-6, Tin Plated, UL

MPN: IKS-350
UPC: 783669490022
PPN: ILC-IKS-350

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$359.11/ EA

Loading add to cart quantity...

Description

Copper Two-Bolt Split Bolt, Main Conductor Range 350-250, Tap Range 350-6, Tin Plated, UL

Specifications

Dimensions

Drive Type Main: External Hex

Height (mm): 71.755

Width BX (IN): 6

Height BX (IN)2.75

Length (mm)54.4576

Width (mm)34.8996

Testing Standards

Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

UL File Number: E6207

UL / CULUS SpecificationUL 486A/B Listed

Additional Class Attributes

Connection: Mechanical

Number of Poles: 1

Number of Conductors2

Material and Finish

Conductor Material: Copper

Material: Copper

Connector FinishTin

Conductor Ranges

Conductor Range CU Stranded (Primary, run, main, line): 350 kcmil - 250 kcmil

Conductor Range CU Stranded (Secondary, tap, load)350 kcmil - 6 Str

Additional Technical Specifications

Conductor Type: Solid, Stranded

General

Bag Quantity: 1

Direct Burial: No

NEMA Code: S-588-4

Carton Quantity DescriptionSTD PACK QTY 12

Dual RatedNo

UPC Code78366949002

Specifications

Height: 2.825 in | 71.755 mm

Weight: 0.104416781163024 lbs

Length2.144 in | 54.4576 mm

Width1.374 in | 34.8996 mm

Bolt and Screw Sizes

Number of Wire Binding Screws per Port: 2

Color

Color: Copper

Downloads
