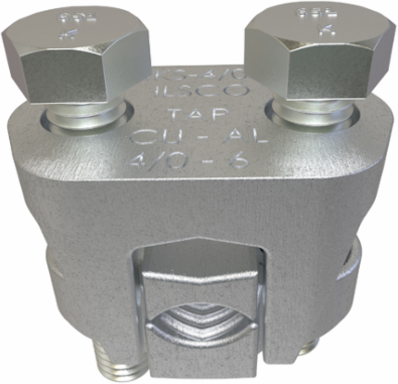

ILSCO IKS-4/0 Copper Two-Bolt Split Bolt, Main Conductor Range 4/0-1/0, Tap Range 4/0-6, Tin Plated, UL
- MPN: IKS-4/0
- UPC: 783669490008
- PPN: ILC-IKS-4/0
CAD
$173.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Two-Bolt Split Bolt, Main Conductor Range 4/0-1/0, Tap Range 4/0-6, Tin Plated, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.25 in | 57.15 mm
- Weight
- 0.060537988171881 lbs
Length1.803 in | 45.7962 mm
Width1.15 in | 29.21 mm
Dimensions
- Drive Type Main
- External Hex
- Height (mm)
- 57.15
- Width BX (IN)
- 6.188
Height BX (IN)2
Length (mm)45.7962
Width (mm)29.21
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors2
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 1/0 Str
Conductor Range CU Stranded (Secondary, tap, load)4/0 Str - 6 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 12
Dual RatedNo
UPC Code78366949000
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 2
Color
- Color
- Copper
