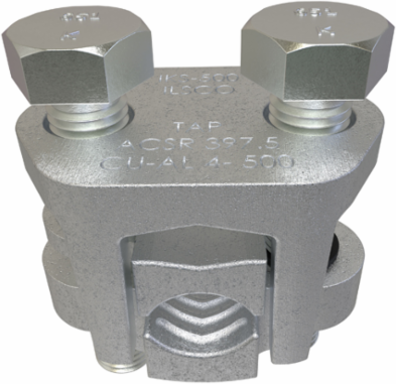

ILSCO IKS-500 Copper Two-Bolt Split Bolt, Main Conductor Range 500-400, Tap Range 500-4, Tin Plated, UL
- MPN: IKS-500
- UPC: 783669490046
- PPN: ILC-IKS-500
CAD
$458.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Two-Bolt Split Bolt, Main Conductor Range 500-400, Tap Range 500-4, Tin Plated, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.825 in | 71.755 mm
- Weight
- 0.128288530561361 lbs
Length2.35 in | 59.69 mm
Width1.553 in | 39.4462 mm
Dimensions
- Drive Type Main
- External Hex
- Height (mm)
- 71.755
- Width BX (IN)
- 6.1875
Height BX (IN)2
Length (mm)59.69
Width (mm)39.4462
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors2
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil - 400 kcmil
Conductor Range CU Stranded (Secondary, tap, load)500 kcmil - 4 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedNo
UPC Code78366949004
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 2
Color
- Color
- Copper
