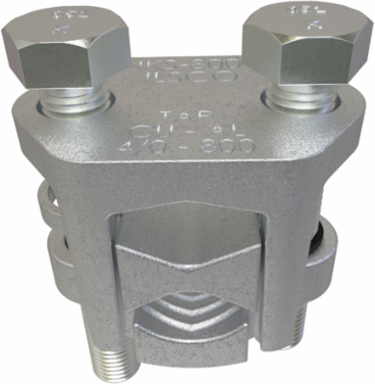

ILSCO IKS-800 Copper Two-Bolt Split Bolt, Main Conductor Range 800-400, Tap Range 800-4/0, Tin Plated, UL
- MPN: IKS-800
- UPC: 783669490060
- PPN: ILC-IKS-800
CAD
$622.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Two-Bolt Split Bolt, Main Conductor Range 800-400, Tap Range 800-4/0, Tin Plated, UL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.575 in | 90.805 mm
- Weight
- 0.176988963452342 lbs
Length2.538 in | 64.4652 mm
Width1.688 in | 42.8752 mm
Dimensions
- Drive Type Main
- External Hex
- Height (mm)
- 90.805
- Width BX (IN)
- 6.1875
Height BX (IN)2
Length (mm)64.4652
Width (mm)42.8752
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Connection
- Mechanical
- Number of Poles
- 1
Number of Conductors2
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 800 kcmil - 400 kcmil
Conductor Range CU Stranded (Secondary, tap, load)800 kcmil - 4/0 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-4
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedNo
UPC Code78366949006
Bolt and Screw Sizes
- Number of Wire Binding Screws per Port
- 2
Color
- Color
- Copper
