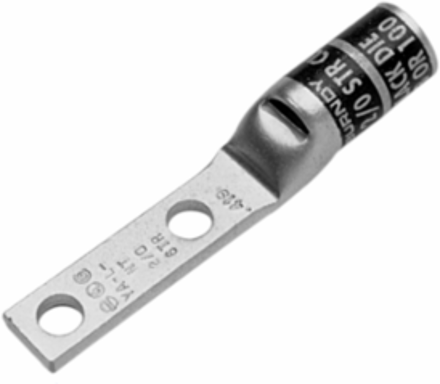

Burndy YA29L2NT38 Copper YA29L2NT38
- MPN: YA29L2NT38
- UPC: 781810498088
- PPN: BUR-10108459
CAD
$49.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper compression terminal,Double holes /W/ insp Window,250 kcmil,3/8" stud,Tin plated,Yellow,16 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - D inch
- 1.83 in
- Dimension - Length Overall inch
- 3.43 in
- Dimension - Outside Diameter inch
- 0.75 in
- Dimension - Strip Length inch
- 1-1/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.00 in
Dimension - Bolt Size fraction3/8
Dimension - L Length Overall mm87 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch0.80 in
Dimension - Stud Size inch3/8
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Solid Size Range
- 250
- Conductor - Copper Str Size Range
- 250
Conductor - Copper Solid Size250
Conductor - Copper Str Size250
General
- Color Code
- Yellow
- Die Index
- 16
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
UPC781810498088
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
