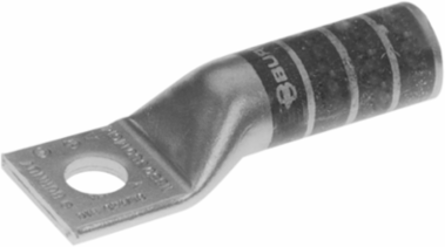

Burndy YA2CNT10 HYLUGTM Copper Terminal Connector, 2 AWG, 1-5/16 Inch Strip Length, Brown
- MPN: YA2CNT10
- UPC: 781810137383
- PPN: BUR-50257E
CAD
$36.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUGTM,Single hole W/O insp window,#2 AWG,#10 Stud,10 index,Brown,Electro Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.20 in
- Dimension - L Length Overall mm
- 53 mm
- Dimension - N inch
- 0.25 in
- Dimension - Pad Width inch
- 0.50 in
- Dimension - Z inch
- 0.27 in
Dimension - B Length inch1.25 in
Dimension - D inch0.52 in
Dimension - Length Overall inch2.10 in
Dimension - Outside Diameter inch0.42 in
Dimension - Strip Length inch1-5/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedNo
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Conductor - Copper Str Size Range
- 2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- UPC
- 781810137383
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 100
