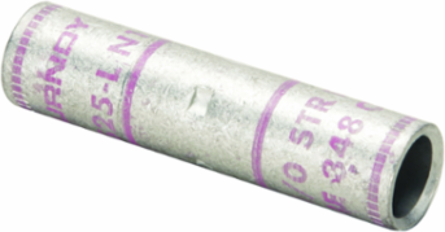

Burndy YS1CLBOX Copper Reducer/Splice, 1 AWG, 2.06 Inch Length, 35 kV, Tin Plated
- MPN: YS1CLBOX
- UPC: 781810555002
- PPN: BUR-518500
CAD
$12.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Compression CU Reducer/Splice, 1(Str) 75(Navy), 600V-35kV, Standard Barrel, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - L Length Overall mm
- 52 mm
- Dimension - Outside Diameter inch
- 0.46 in
Dimension - B Length inch0.88 in
Dimension - Length Overall inch2.06 in
Dimension - Strip Length inch15/16
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL486A-UL486B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL486A-486B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 75 (37) Navy
Conductor - Copper Str Size1 AWG
General
- Application
- For Limited Space Applications
- Connector Type
- Splice
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLINK™
- UPC
- 781810555002
Color CodeGreen
Die Index11;98;375
Feature - Barrel TypeStandard
PlatedY
Sub BrandHYLINK
TypeYS-L, Standard Barrel
UPC 12 Digit7818105550022
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
