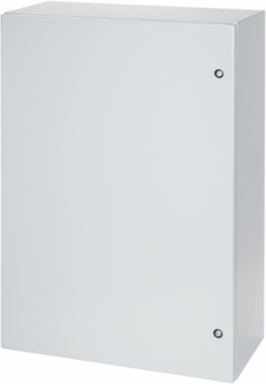

nVent Hoffman CSD12126 Concept Single-Door Enclosure 12 Inch x 12 Inch x 6 Inch, Steel, IP66
- MPN: CSD12126
- UPC: 783510772901
- PPN: HOF-CSD12126
- UNSPSC: 39121324
CAD
$492.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD12126 item measures 12.00x12.00x6.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 305
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.52
- Mounting (G x H)
- 267 x 267
- Latch Type
- Quarter-Turn
- Weight
- 13.2
- Material
- Steel
- Color
- ANSI 61 Gray
Height (H)305
Depth (D)152
Product FamilyConcept
Color CodeANSI 61
Door Thickness1.52
Latch Quantity1
IP RatingIP66
Sub BrandConcept
Size12.00x12.00x6.00 in
NEMA Rating12 Indoor, dust-resistant
