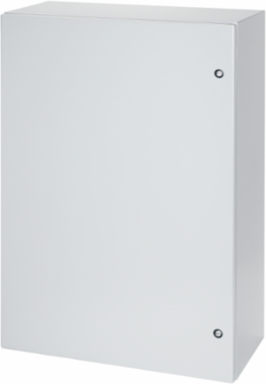

nVent Hoffman CSD20128LG Concept Single-Door Enclosure 20 x 12 x 8 Inch Steel, Gray, NEMA 12
- MPN: CSD20128LG
- UPC: 783510294564
- PPN: HOF-CSD20128LG
- UNSPSC: 39121324
CAD
$637.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD20128LG item measures 20.00x12.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12, IP66
- Material
- Steel
- Door Thickness
- 1.52 in
- Mounting (G x H)
- 470 x 267 mm
- Door Opening
- 210 degrees
- Hinges
- Easy-to-remove hinge pins with captivation clip
- Panel Mounting
- Studs fit optional Concept panels
- Door Alignment Device
- On doors wider than 30 in
- Sub Brand
- Concept
Dimensions20.00 x 12.00 x 8.00 in
FinishRAL 7035 Textured Light Gray Polyester Powder Coated
Body Thickness1.52 in
Latch TypeQuarter-turn slotted, Quantity: 1
Door StyleCorner-formed single door
GasketSeamless foam-in-place
GroundingGrounding stud on body, bonding provision on door
Product FamilyConcept
Weight21 lbs
