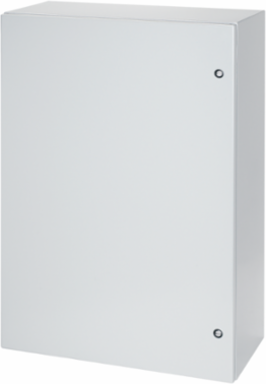

Nvent Hoffman CSD202410LG Concept Single-Door Enclosure, 20 x 24 x 10 Inch, Steel, NEMA 12
Nvent Hoffman CSD202410LG Concept Single-Door Enclosure, 20 x 24 x 10 Inch, Steel, NEMA 12
- MPN: CSD202410LG
- UPC: 783510376291
- PPN: HOF-CSD202410LG
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$758.15/ EA
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD202410LG item measures 20.00x24.00x10.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.52
- Mounting (G x H)
- 470 x 572
- Latch Type
- Quarter-Turn
- Weight
- 36.5
- Material
- Steel
- Color
- RAL 7035 Lt. Gray
Height (H)508
Depth (D)254
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.52
Latch Quantity1
IP RatingIP66
Sub BrandConcept
Size20.00x24.00x10.00 in
NEMA Rating12 Indoor, dust-resistant
