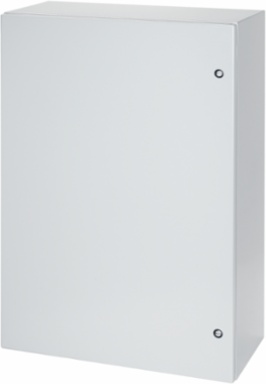

Nvent Hoffman CSD16168 Concept Single-Door Enclosure 16.00x16.00x8.00 Inch, Steel, NEMA Type 12, IP66
Nvent Hoffman CSD16168 Concept Single-Door Enclosure 16.00x16.00x8.00 Inch, Steel, NEMA Type 12, IP66
- MPN: CSD16168
- UPC: 783510773908
- PPN: HOF-CSD16168
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$595.54/ EA
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD16168 item measures 16.00x16.00x8.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 406
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.52
- Mounting (G x H)
- 368 x 368
- Latch Type
- Quarter-Turn
- Weight
- 21
- Material
- Steel
- Color
- ANSI 61 Gray
Height (H)406
Depth (D)203
Product FamilyConcept
Color CodeANSI 61
Door Thickness1.52
Latch Quantity1
IP RatingIP66
Sub BrandConcept
Size16.00x16.00x8.00 in
NEMA Rating12 Indoor, dust-resistant
