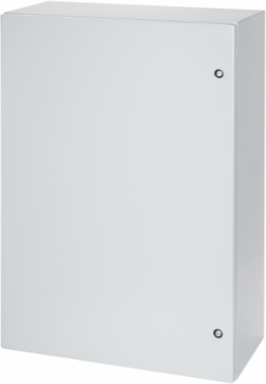

Nvent Hoffman CSD20168 Concept Single-Door Enclosure 20x16x8 Inch, Steel, NEMA Type 12, Gray
Nvent Hoffman CSD20168 Concept Single-Door Enclosure 20x16x8 Inch, Steel, NEMA Type 12, Gray
- MPN: CSD20168
- UPC: 783510774103
- PPN: HOF-CSD20168
- UNSPSC: 39121324
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$637.54/ EA
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD20168 item measures 20.00x16.00x8.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Specifications
- NEMA Rating
- Type 12 Indoor, dust-resistant
- Size
- 20 x 16 x 8 in
- Material
- Steel
- Color
- ANSI 61 Gray
- Latch Type
- Quarter-turn slotted
- Body Thickness
- 1.52 mm
- Weight
- 25.2 lbs
Protection RatingNEMA Type 12
Mounting Size18.5 x 14.5 in
FinishPowder Coated
Latch Quantity1
Door Thickness1.52 mm
IP RatingIP66
