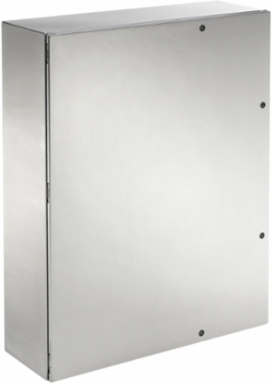

nVent Hoffman CSD423610SSR Concept Wallmount Enclosure 42x36x10 Inch, Stainless Steel, NEMA 12
- MPN: CSD423610SSR
- UPC: 783510148287
- PPN: HOF-CSD423610SSR
- UNSPSC: 39121324
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
For indoor or outdoor applications that require corrosion protection from chemicals and water. This Concept Wallmount Multi 1/4-Turn Latch 4X, CSD423610SSR item measures 42x36x10 in. with a material of SS 304, Brushed.
Features
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- Corner formed doors
- External formed 90-degree body flange
- Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
- Integral door alignment device to properly align door and gasket to body offset
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional doorstop kit
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Documentation & Downloads
Specifications
Additional
| IP Rating | IP66 |
|---|---|
| Latch Type | Quarter-Turn |
| Size | 42 x 36 x 10 in |
| Door Thickness | 14 ga |
| Door Style | Corner formed, interchangeable |
| Material | Type 304 Stainless Steel |
| Construction | 14 gauge |
| Hinges | Stainless steel hidden hinges |
| Panel Mounting | Studs fit optional Concept panels and accessories |
| Product Family | Concept |
| NEMA Rating | Type 12, Indoor, dust-resistant |
|---|---|
| Latch Quantity | 4 |
| Weight | 105 lb |
| Body Thickness | 14 ga |
| Mounting | Mounting holes in back of body for direct mounting or optional external mounting brackets |
| Finish | Brushed #4 |
| Sealing | Seamless foam-in-place gasket, self-grounding latch system with double seal |
| Special Provisions | Bonding provision on door; grounding stud on body; thermoplastic data pocket; optional doorstop kit provision |
| Sub Brand | Concept |
