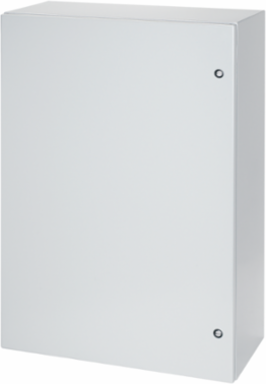

nVent Hoffman CSD303012 Concept Single-Door Enclosure 30x30x12 Inch, Steel, IP66, NEMA 12
- MPN: CSD303012
- UPC: 783510775803
- PPN: HOF-CSD303012
- UNSPSC: 39121324
CAD
$1096.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD303012 item measures 30.00x30.00x12.00 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Additional
| Size | 30.00 x 30.00 x 12.00 in |
|---|---|
| NEMA Rating | 12 Indoor, dust-resistant |
| Body Thickness | 1.9 in |
| Finish | Powder Coated Gray polyester powder paint inside and out |
| Latch Quantity | 2 |
| Color | ANSI 61 Gray |
| Height | 762 mm |
| Protection Rating | NEMA Type 12 |
| Sub Brand | Concept |
| Door Opening Angle | 210 degrees |
| Hinges | Hidden, removable door hinges |
| Gasket | Seamless foam-in-place |
| Body Flange | Minimum-width external formed |
| Mounting Holes | In back of body for optional wall-mount brackets |
| Grounding | Grounding stud on body; bonding provision on door |
| IP Rating | IP66 |
|---|---|
| Door Thickness | 1.9 in |
| Material | Steel |
| Latch Type | Quarter-turn slotted |
| Weight | 78 lb |
| Width | 762 mm |
| Depth | 305 mm |
| Mounting (G x H) | 724 x 724 mm |
| Product Family | Concept |
| Latch Points | Three-point latch system |
| Door Construction | Corner-formed |
| Studs and Fasteners | High-torque threadless studs and fasteners |
| Door Alignment Device | For doors wider than 30 in |
| Mounting System | Panel mounting studs fit optional Concept panels and accessories |
