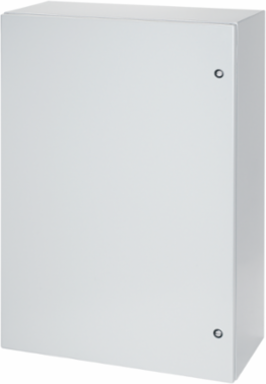

nVent Hoffman CSD242410LG Concept Single-Door Enclosure 24 Inch x 24 Inch x 10 Inch, Steel, IP66
- MPN: CSD242410LG
- UPC: 783510376598
- PPN: HOF-CSD242410LG
- UNSPSC: 39121324
CAD
$821.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Concept Enclosures are ideal for machine control applications. This Concept Single-Door Enclosure, CSD242410LG item measures 24.00x24.00x10.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 inch
- Four hinges on 60-inch high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Documentation & Downloads
Specifications
Additional
- Size
- 24.00 x 24.00 x 10.00 in
- Material
- Steel
- Door Thickness
- 1.9 mm
- Latch Type
- Quarter-turn slotted
- IP Rating
- IP66
- Weight
- 45 lbs
- Width (W)
- 610 mm
- Sub Brand
- Concept
Mounting Size22.50 x 22.50 in
Body Thickness1.52 mm
FinishPowder Coated RAL 7035 Lt. Gray
Latch Quantity2
Protection RatingNEMA Type 12 Indoor, dust-resistant
Height (H)610 mm
Depth (D)254 mm
Product FamilyConcept
