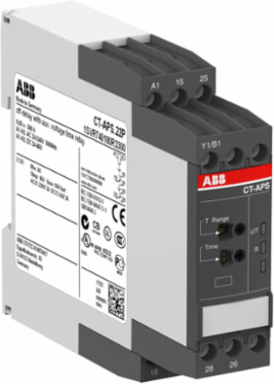

ABB 1SVR740180R3300 Electronic Time Relay, OFF-Delay, 24-240V AC/DC, 2 c/o Contacts, 0.05 s - 300 h
- MPN: 1SVR740180R3300
- UPC: 804325584500
- PPN: ABB-1SVR740180R3300
- UNSPSC: 39122329
CAD
$252.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CT-APS.22P is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (delay on break) function with 10 time ranges from 0.05 s to 300 h.This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Output
- 2 c/o (SPDT) contacts
- Rated Control Supply Voltage
- 24 ... 240 V AC, 24 ... 48 V DC
- Time Range
- 0.05 s ... 300 h
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Ambient Air Temperature
- Operation -25 ... +60 C, Storage -40 ... +85 C
- Degree of Protection
- Housing IP50, Terminals IP20
- Mounting Position
- 1 ... 6
- Pilot Duty UL/CSA
- B300
- Wire Stripping Length
- 8 mm
- Maximum Operating Altitude Permissible
- 2000 m without derating
- Minimum Switching Capacity
- 12 V, 10 mA
- Rated Operational Voltage
- Auxiliary Circuit 250 V
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Rated Impulse Withstand Voltage (Uimp)
- Input Circuit 4 kV, Output Circuit 1 / 2 4 kV
- Mechanical Durability
- 30000000 cycles
- RoHS Status
- EU Directive 2011/65/EU compliant
- E-Number (Sweden)
- 4033141
- Customs Tariff Number
- 85364900
- ETIM 9
- EC001439 - Timer relay
- Product Net Width
- 22.5 mm
- Product Net Weight
- 0.127 kg
Timer Relay TypeOFF-Delay
Contact Rating250 V, 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Overvoltage CategoryIII
Connecting CapacityFlexible and rigid 2x 0.5 ... 1.5 mm2
Electrical DurabilityAC-12 100000 cycles
Terminal TypeScrewless Terminals
Contact Rating UL/CSAB300
Connecting Capacity UL/CSAFlexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
Mounting on DIN RailTH35-15 and TH35-7.5 mounting rails acc. to IEC 60715
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Rated Frequency (f)50 Hz, 60 Hz, DC
Rated Insulation Voltage (Ui)Input Circuit / Output Circuit 500 V, Output Circuit 1 / 2 300 V
Pollution Degree3
Flammability According to UL94V-0
StandardsCAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
E-Number (Finland)2712229
Object Classification CodeK
Product Net Height85.6 mm
Product Net Depth / Length103.7 mm
