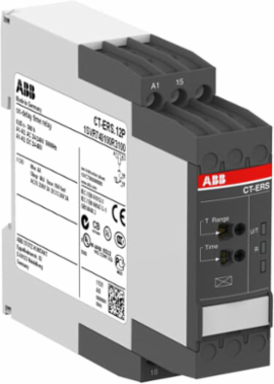

ABB 1SVR740100R3100 ON-Delay Time Relay 1 c/o, 24-240V AC/DC, 0.05s-300h Delay
- MPN: 1SVR740100R3100
- UPC: 804325584432
- PPN: ABB-1SVR740100R3100
- UNSPSC: 39122329
CAD
$186.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CT-ERS.12P is a single-function electronic time relay from the CT-S timer range. It provides an ON-delay (delay on make) function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Function
- ON-Delay
- Rated Control Supply Voltage
- 24 ... 240 V AC, 24 ... 48 V DC
- Time Range
- 0.05 s ... 300 h
- Maximum Operating Voltage
- Output Circuit 300 V AC
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Impulse Withstand Voltage (Uimp)
- Input Circuit 4 kV, Output Circuit 1 / Output Circuit 2 4 kV
- Pilot Duty UL/CSA
- B300
- Minimum Switching Capacity
- 12 V, 10 mA
- Electrical Durability
- AC-12 100000 cycles
- Terminal Type
- Screwless Terminals
- Product Net Dimensions (W x H x D)
- 22.5 mm x 85.6 mm x 103.7 mm
- Ambient Air Temperature
- Operation -25 ... +60 C, Storage -40 ... +85 C
- Flammability According to UL94
- V-0
- RoHS Status
- EU Directive 2011/65/EU Compliant
- Maximum Operating Altitude Permissible
- Without Derating 2000 m
- E-Number (Finland)
- 2712222
- eClass
- V11.0 : 27371605
- Object Classification Code
- K
Output1 c/o (SPDT) contact
Output Rating250 V, 4 A
Rated Operational VoltageAuxiliary Circuit 250 V
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Insulation Voltage (Ui)Input Circuit / Output Circuit 500 V, Output Circuit 1 / Output Circuit 2 300 V
Overvoltage CategoryIII
Contact Rating UL/CSAB300
Mechanical Durability30000000 cycles
Connection CapacityFlexible 2x 18-16 AWG, Rigid 2x 20-16 AWG; Flexible with Ferrule 2x 0.5 ... 1.5 mm2, Rigid 2x 0.5 ... 1.5 mm2
Mounting on DIN RailTH35-15 (35 x 15 mm), TH35-7.5 (35 x 7.5 mm) acc. to IEC 60715
Product Net Weight0.101 kg
Degree of ProtectionHousing IP50, Terminals IP20
StandardsCAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Pollution Degree3
Mounting Position1 ... 6
E-Number (Sweden)4033134
ETIM 9EC001439 - Timer relay
Customs Tariff Number85364900
