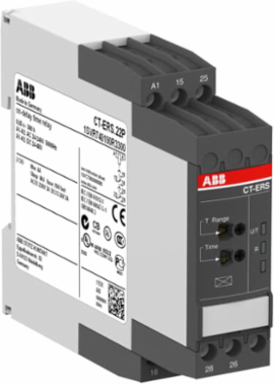

ABB 1SVR740100R3300 CT-ERS.22P ON-Delay Time Relay 0.05s to 300h, 24-240VAC, 4A Output
- MPN: 1SVR740100R3300
- UPC: 804325584449
- PPN: ABB-1SVR740100R3300
- UNSPSC: 39122329
CAD
$223.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CT-ERS.22P is a single-function electronic time relay from the CT-S timer range. It provides an ON-delay (delay on make) function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Function
- ON-Delay
- Voltage
- Auxiliary Circuit 250 V
- Time Range
- 0.05 s ... 300 h
- Contact Configuration
- 2 c/o (SPDT) contacts
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Impulse Withstand Voltage (Uimp)
- Input Circuit 4 kV, Output Circuit 1 / 2 4 kV
- Maximum Operating Altitude Permissible
- Without Derating 2000 m
- Length
- 103.7 mm
- Height
- 85.6 mm
- Terminal Type
- Screwless Terminals
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm), TH35-7.5 (35 x 7.5 mm) acc. to IEC 60715
- Connecting Capacity
- Flexible 0.5 ... 1.5 mm2, Rigid 0.5 ... 1.5 mm2; UL/CSA Flexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
- Degree of Protection
- Housing IP50, Terminals IP20
- Flammability According to UL94
- V-0
- RoHS Status
- Following EU Directive 2011/65/EU
- Contact Rating UL/CSA
- B300
- Minimum Switching Capacity
- 12 V, 10 mA
Control Supply Voltage24 ... 240 V AC, 24 ... 48 V DC
Contact Rating250 V, 4 A
Electrical DurabilityAC-12 100000 cycles
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Insulation Voltage (Ui)Input / Output Circuit 500 V, Output Circuit 1 / 2 300 V
Maximum Operating Voltage UL/CSAOutput Circuit 300 V AC
Mechanical Durability30000000 cycles
Width22.5 mm
Net Weight0.113 kg
Wire Stripping Length8 mm
Mounting Position1 ... 6
Pollution Degree3
Ambient Air TemperatureOperation -25 ... +60 C, Storage -40 ... +85 C
StandardsCAN/CSA C22.2 No.14, IEC/EN 61812-1, IEC/EN 63000, UL 508
Overvoltage CategoryIII
Pilot Duty UL/CSAB300
