ABB 1SVR740010R3200 Multifunction Time Relay 2 c/o, 24-48VDC, 24-240VAC, 0.05s-300h
- MPN: 1SVR740010R3200
- UPC: 804325584357
- PPN: ABB-1SVR740010R3200
- UNSPSC: 39122329
CAD
$309.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

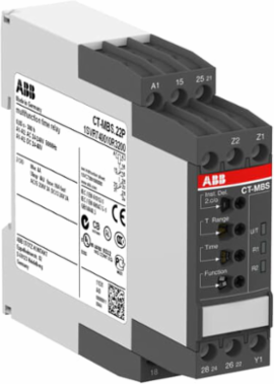

The CT-MBS.22P is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A control input works with volt-free (floating) triggering. The CT-MBS.22P offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Control Supply Voltage
- 24 ... 240 V AC, 24 ... 48 V DC
- Output
- 2 c/o (SPDT) contacts
- Timer Relay Type
- Impulse OFF, Impulse ON, OFF-Delay, ON-Delay, Star-Delta
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Insulation Voltage (Ui)
- Input/Output Circuit 500 V, Output Circuits 1 and 2 300 V
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Electrical Durability
- AC-12 100000 cycles
- Connecting Capacity
- Flexible and rigid 2x 0.5 ... 1.5 mm2, flexible with insulated ferrule 2x 0.5 ... 1.5 mm2
- Wire Stripping Length
- 8 mm
- Product Net Height
- 85.6 mm
- Product Net Depth / Length
- 103.7 mm
- Ambient Air Temperature
- Operation -25 ... +60 B0C, Storage -40 ... +85 B0C
- Flammability According to UL94
- V-0
- RoHS Compliance
- EU Directive 2011/65/EU
- Maximum Operating Altitude
- Without derating 2000 m
- E-Number (Finland)
- 2712214
- Customs Tariff Number
- 85364900
- ETIM Version
- V11.0 : 27371605
- Function
- Remote potentiometer connection
- Pilot Duty UL/CSA
- B300
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
- Timer Functions
- 10 functions
Contact Rating250 V, 4 A
Time Range0.05 s ... 300 h
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational VoltageAuxiliary Circuit 250 V
Rated Impulse Withstand Voltage (Uimp)Input Circuit 4 kV, Output Circuits 1 and 2 4 kV
Overvoltage CategoryIII
Mechanical Durability30000000 cycles
Connecting Capacity UL/CSAFlexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
Terminal TypeScrewless Terminals
Product Net Width22.5 mm
Product Net Weight0.129 kg
Degree of ProtectionHousing IP50, Terminals IP20
StandardsCAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Pollution Degree3
Mounting on DIN RailTH35-7.5 and TH35-15 acc. to IEC 60715
E-Number (Sweden)4033126
Object Classification CodeK
ETIM CodeEC001439 - Timer relay
Minimum Switching Capacity12 V, 10 mA
Contact Rating UL/CSAB300
Mounting Position1 ... 6
