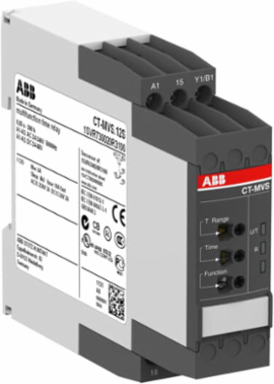

ABB 1SVR740020R3100 Multifunction Time Relay, 24-48VDC, 24-240VAC, 0.05s to 300h
- MPN: 1SVR740020R3100
- UPC: 804325584371
- PPN: ABB-1SVR740020R3100
- UNSPSC: 39122329
CAD
$276.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CT-MVS.12P is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
Additional
- Control Supply Voltage
- 24 ... 240 V AC, 24 ... 48 V DC
- Rated Operational Current AC-12 (Ie)
- 4 A (230 V)
- Rated Operational Current DC-13 (Ie)
- 2 A (24 V)
- Maximum Operating Voltage UL/CSA
- 300 V AC Output Circuit
- Time Range
- 0.05 s ... 300 h
- Mechanical Durability
- 30000000 cycles
- Ambient Air Temperature
- Operation -25 ... +60 C, Storage -40 ... +85 C
- Product Net Dimensions
- Height 85.6 mm, Width 22.5 mm, Depth 103.7 mm
- Material / Construction
- Housing IP50, Terminals IP20, Screwless Terminals, Flammability UL94 V-0
- Connecting Capacity UL/CSA
- Flexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
- Rated Insulation Voltage
- 500 V Input/Output Circuit, 300 V Output Circuit 1/2
- Short-Circuit Protective Devices
- Output Circuit NC - 6 A F Type Fuses, Output Circuit NO - 10 A F Type Fuses
- Standards
- CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
Rated Operational Voltage250 V AC Auxiliary Circuit
Rated Operational Current DC-12 (Ie)4 A (24 V)
Pilot Duty UL/CSAB300
Output1 c/o (SPDT) contact
Electrical Durability100000 cycles AC-12
Rated Frequency50 Hz, 60 Hz, DC
Mounting on DIN RailTH35-15 (35 x 15 mm) and TH35-7.5 (35 x 7.5 mm) acc. IEC 60715
Weight0.102 kg
Connecting CapacityFlexible 2x 0.5 ... 1.5 mm2, Rigid 2x 0.5 ... 1.5 mm2
Pollution Degree3
Rated Impulse Withstand Voltage4 kV Input Circuit and Output Circuits
RoHS ComplianceFollowing EU Directive 2011/65/EU
Overvoltage CategoryIII
