ABB 1SVR500211R0100 Star-Delta Time Relay 2 n/o Output, 24-48 V DC/24-240 V AC, Time Range 0.05 s - 10 min
- MPN: 1SVR500211R0100
- UPC: 804325195560
- PPN: ABB-1SVR500211R0100
- UNSPSC: 39122329
CAD
$305.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

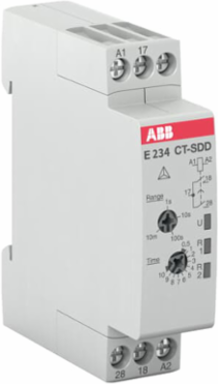

The CT-SDD.22 is a single-function electronic time relay from the CT-D timer range. It provides a star-delta function with 4 time ranges from 0.05 s to 10 min. and a fixed transition time of 50 ms. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 n/o output with contacts rated at 250 V / 5 A.
Specifications
Dimensions
- Product Net Width
- 17.5 mm
- Product Net Depth / Length
- 63 mm
Product Net Height70 mm
Product Net Weight0.059 kg
Technical
- Timer Relay Type
- Star-Delta
- Rated Control Supply Voltage (Us)
- 24 ... 240 V AC24 ... 48 V DC
- Rated Frequency (f)
- DC50 / 60 Hz
- Terminal Type
- Screw Terminals
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Insulation Voltage (Ui)
- Input Circuit / Output Circuit 300 VOutput Circuit 1 / Output Circuit 2 300 V
- Overvoltage Category
- III
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
- Tightening Torque
- 0.5 ... 0.8 N·m
- Recommended Screw Driver
- 0.8 x 4Pozidriv 1
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Time Range0.05 s ... 10 min
Rated Operational VoltageAuxiliary Circuit 250 V
Output2 n/o contacts
Rated Operational Current AC-12 (Ie)(230 V) 5 A
Rated Operational Current DC-12 (Ie)(24 V) 5 A
Rated Impulse Withstand Voltage (Uimp)Input Circuit 4 kV
Degree of ProtectionHousing IP50Terminals IP20
Pollution Degree3
Connecting CapacityFlexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 1.5 mm²
Wire Stripping Length7 mm
Mounting Position1 ... 6
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371605
ETIM 9EC001439 - Timer relay
E-Number (Finland)2712823
Environmental
- Ambient Air Temperature
- Operation -20 ... +60 °CStorage -40 ... +85 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Connecting Capacity UL/CSA
- Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-16 AWG
- Pilot Duty UL/CSA
- C300
Contact Rating UL/CSAC300
Tightening Torque UL/CSA4.43 ... 7.08 in·lb
Flammability According to UL94V-2
Ordering
- Minimum Order Quantity
- 1 piece
Customs Tariff Number85364900
