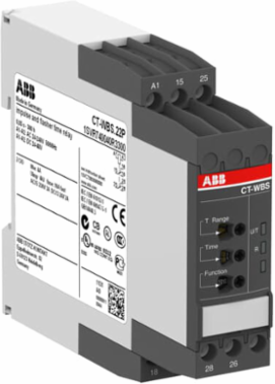

ABB 1SVR740040R3300 Electronic Impulse Time Relay, 2 c/o, 24-48VDC, 24-240VAC, 0.05s-300h
ABB 1SVR740040R3300 Electronic Impulse Time Relay, 2 c/o, 24-48VDC, 24-240VAC, 0.05s-300h
- MPN: 1SVR740040R3300
- PPN: ABB-1SVR740040R3300
- UNSPSC: 39122329
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$229.75/ EA
Description
The CT-WBS.22P is an electronic impulse and flasher time relay from the CT-S timer range. It provides 7 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
Specifications
- Rated Control Supply Voltage (Us)
- 24 ... 240 V AC, 24 ... 48 V DC
- Contact Rating
- 250 V, 4 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Electrical Durability
- AC-12 100000 cycle
- Rated Insulation Voltage (Ui)
- Input/Output Circuit 500 V, Output Circuits 1 and 2 300 V
- Rated Frequency (f)
- 50 Hz, 60 Hz, DC
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Pilot Duty UL/CSA
- B300
- Wire Stripping Length
- 8 mm
- Product Net Height
- 85.6 mm
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm), TH35-7.5 (35 x 7.5 mm) acc. to IEC 60715
- Terminal Type
- Screwless Terminals
- Connecting Capacity UL/CSA
- Flexible 2x 18-16 AWG, Rigid 2x 20-16 AWG
- Flammability According to UL94
- V-0
- Standards
- CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61812-1, UL 508
- Overvoltage Category
- III
- Maximum Operating Altitude Permissible
- Without derating 2000 m
Output2 c/o (SPDT) contacts
Time Range0.05 s to 300 h
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Mechanical Durability30000000 cycle
Rated Operational VoltageAuxiliary Circuit 250 V
Rated Impulse Withstand Voltage (Uimp)Input Circuit 4 kV, Output Circuits 1 and 2 4 kV
Contact Rating UL/CSAB300
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A, Output Circuit NO - F Type Fuses 10 A
Product Net Width22.5 mm
Product Net Depth / Length103.7 mm
Mounting Position1 to 6
Connecting CapacityFlexible with Ferrule 2x 0.5 to 1.5 mm², Flexible with Insulated Ferrule 2x 0.5 to 1.5 mm², Flexible 2x 0.5 to 1.5 mm², Rigid 2x 0.5 to 1.5 mm²
Degree of ProtectionHousing IP50, Terminals IP20
RoHS StatusCompliant with EU Directive 2011/65/EU
Pollution Degree3
Ambient Air TemperatureOperation -25 to +60 °C, Storage -40 to +85 °C
