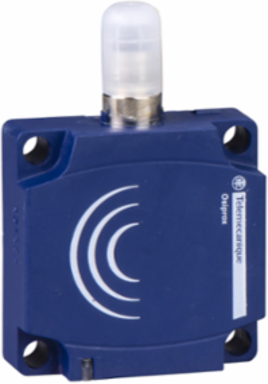

Telemecanique Sensors XS7C1A1PAM8 Inductive proximity sensors XS, inductive sensor XS7 40x40x15, PBT, Sn15mm, 12...24 VDC, M8
Telemecanique Sensors XS7C1A1PAM8 Inductive proximity sensors XS, inductive sensor XS7 40x40x15, PBT, Sn15mm, 12...24 VDC, M8
- MPN: XS7C1A1PAM8
- PPN: TES-XS7C1A1PAM8
- UNSPSC: 39122230
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$203.43/ EA
Description
This XS flat (40 x 40 x 15 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose flat inductive proximity sensor is mountable directly on a surface, thanks to its 4 screw fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M8 connector, compatible with all existing market sensor cabling. It is C-Tick, ECOLAB, CSA, UL certified.
Specifications
Environment
- Product Certifications
- CSA || UL || Ecolab || C-Tick
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071001EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 2 ms
- Operating Zone
- 0-12 mm
- Marking
- CE
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 10 ms
- Detection Face
- frontal
- Front Material
- PBT
Height40 mm
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<2 V closed)
Switching Frequency<= 1000 Hz
Maximum Delay Recovery5 ms
Supply Voltage Limits10-36 V DC
Width40 mm
Depth15 mm
Specifications
- Electrical Connection
- male connector M8, 3 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS7
- Size
- 15 mm
- Ip Degree Of Protection
- IP67 IEC 60529
- Body Type
- fixed
- Detector Flush Mounting Acceptance
- flush mountable
- Sensor Design
- flat form 40 x 40 x 15
- Output Circuit Type
- DC
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Materialplastic
Wiring Technique3-wire
Series Namegeneral purpose
Sensor Typeinductive proximity sensor
Switching Capacity In Ma<= 100 mA DC overload and short-circuit protection
Enclosure MaterialPBT
