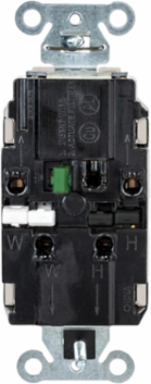

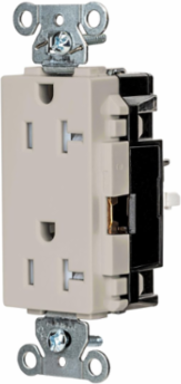

Hubbell Wiring Device-Kellems DR20STLATR EdgeConnect™ Decorator Receptacle, Commercial Grade, 20A 125V, Light Almond
- MPN: DR20STLATR
- UPC: 783585728421
- PPN: HBL-DR20STLATR
- UNSPSC: 39121406
CAD
$24.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, EdgeConnect™, Decorator Receptacle, Commercial Grade, Tamper Resistant, 2-Pole 3-Wire, 20A 125V, 5-20R, Screwless Terminal, Light Almond
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
- EdgeConnect™ Technology, Screwless Termination
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.600 in
- Size
- Standard Sized Product
- Color
- Light Almond
- Dielectric Strength
- Withstands 2,000V minimum
- Mounting
- Screw Mount
- Number of Poles
- 2-Pole
- Phase
- Single
- Standard
- UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;NEMA® WD-6 Compliant
- Type
- Tamper-Resistant
- Wire Size
- #14 AWG to #10 AWG
- General Literature Asset 2 Display Text
- EdgeConnect™ Technology FAQ
- Mounting Type
- Screw Mount
- Number Of Poles
- 2-Pole
- Style
- Style Line Decorator
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material
- Thermoplastic/C
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Pallet Height
- 51.000 in
- Pallet Weight
- 1172.500 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Industry Standard(s)UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;NEMA® WD-6 Compliant
ApplicationCommercial Specification Grade
Connection2-Pole, 3 Wire
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA Rating5-20R
Number of Wires3-Wire
Special FeaturesEdgeConnect™ Technology, Screwless Termination
Temperature RatingMaximum continuous 75°C; minimum -40°C (w/o impact)
Voltage Rating125 V
General Literature Asset 1 Display TextEdgeConnect™ Technology
General Literature Asset 3 Display TextEdgeConnect™ Termination vs Standard Push Wire
Nema Rating5-20R
Number Of Wires3-Wire
Class CodeA04
Harmonization Code8536698000
Sub Class CodeA04A060
SeriesEdgeConnect™ Series
BOX SIZE4.900x8.400x3.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585728421
Case Weight22.650 lb.
Pallet Length48.000 in
Pallet Width40.000 in
