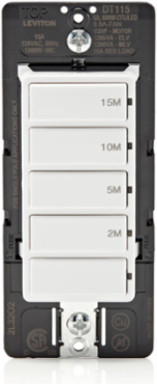

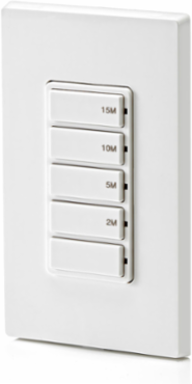

Leviton DT115-1LW Decora Countdown Timer Switch, 15A, 1 2 HP, 15-Minute, In-Wall

MPN: DT115-1LW
UPC: 078477264263
PPN: LEV-DT115-1LW

$56.79

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

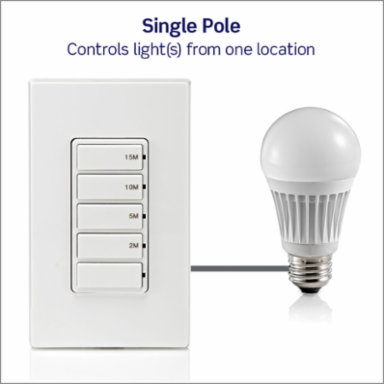

The Decora 15-Minute Countdown Timer Switch has 5 buttons with 2-minute, 5-minute, 10-minute and 15-minute preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White

Features

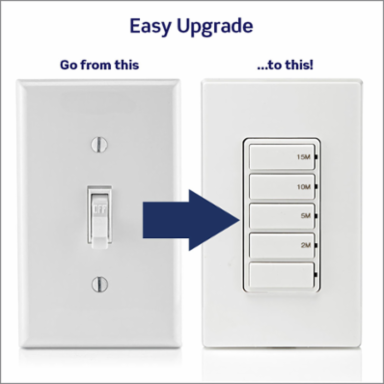

Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally

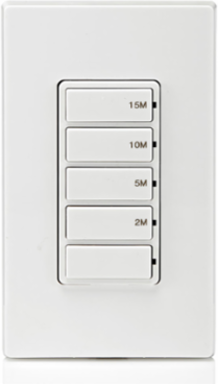

Four preset time option buttons 2-5-10-15 min with separate off button. Press time option to turn on and will automatically turn off when time expires
600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, ½ HP/9.8 Amp Fan/Motor, 15A Resistive

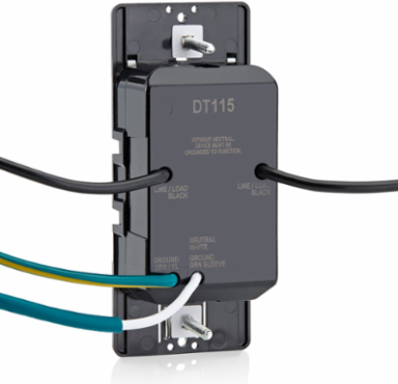

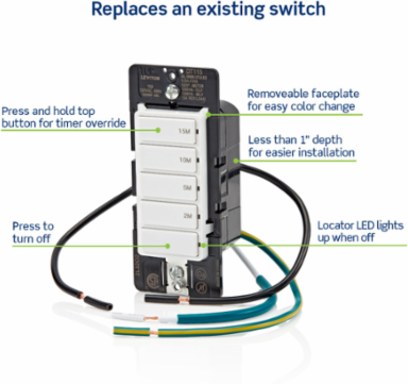

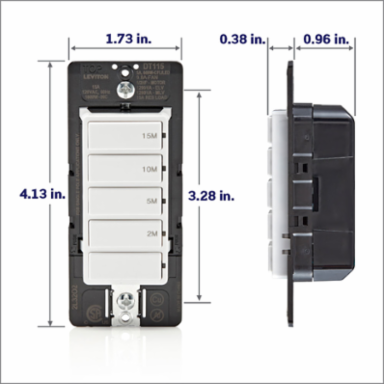

Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws

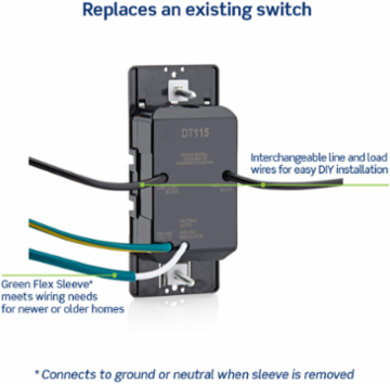

Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation

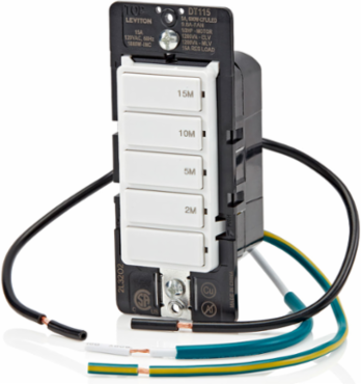

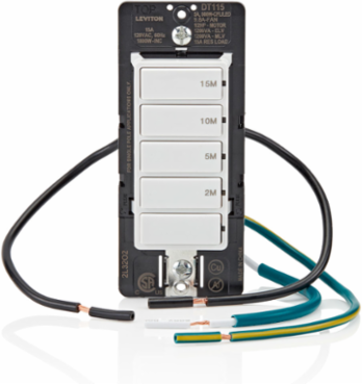

DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
Zero Cross turn-on technology to extend the life of the switch
Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

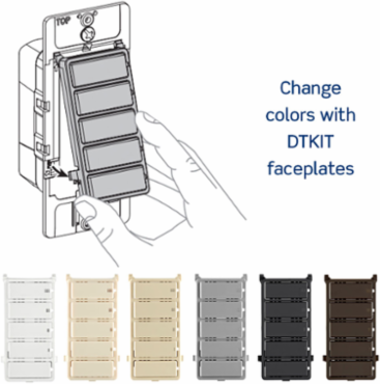

Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
Ideal to use for lights in pantries, closets and other small spaces
Do not use to control lights if there is no other light source in the space
CONVENIENT – replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
EASY DIY INSTALL – slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
ENERGY SAVING – ensure lights and fans are not left on unintentionally
PRACTICAL – for lights in pantries, closets and other small spaces
STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

RoHS Compliant	False

Product Features

Amperage	15 A
Color	White
Device Type	Timer Switch
Function	Single-Pole (SP)
Grounding	Yes
Mounting Type	In-Wall
Optional Faceplates	DTKIT
Standards and Certifications	CSA \| FCC \| IC
Termination	Leads
Timer Type	Countdown
Wallplate	Not Included
Wattage Rating	600W \| 1800W \| 1200VA

Brand	Decora
Compatible Bulb Type	LED \| CFL \| Incandescent \| Halogen \| Magnetic Low Voltage \| Electronic Low Voltage \| Fluorescent \| Fan \| Motor
Faceplate Colors	White \| Ivory \| Light Almond \| Gray \| Black \| Brown
Grade	Residential
Horsepower Rating	1/2 HP
Neutral Required	Optional
Power Consumption	<1 Watt
Style	Push Button
Timer Options	15-Minute (2M, 5M, 10M, 15M)
Voltage	120 VAC
Warranty	5-Year
