Leviton DT260-1LW Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 60-Minute Timer Options
- MPN: DT260-1LW
- UPC: 078477264331
- PPN: LEV-DT260-1LW
CAD
$62.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

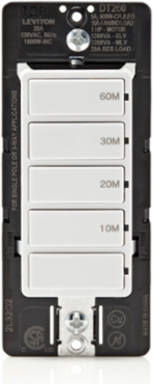

Leviton’s 60-Minute Countdown Timer Switch has 5-buttons with 10-minute, 20-minute, 30-minute and 60-minute time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT260 countdown timers. 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, 1 HP/16A Fan/Motor, 20A Resistive/16A Inductive. Requires a neutral wire for installation, wallplate sold separately - White
Features
- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally

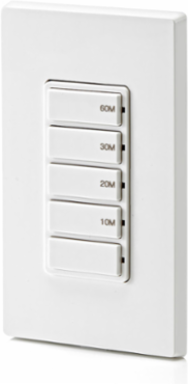

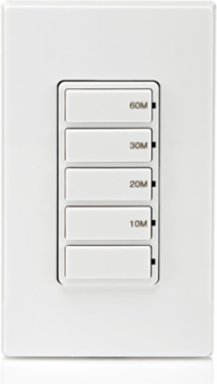

- Four preset time option buttons 10-20-30-60 min with separate off button. Press time option to turn on and will automatically turn off when time expires
- 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, 1 HP/16 Amp Fan/Motor, 20A Resistive/16A Inductive

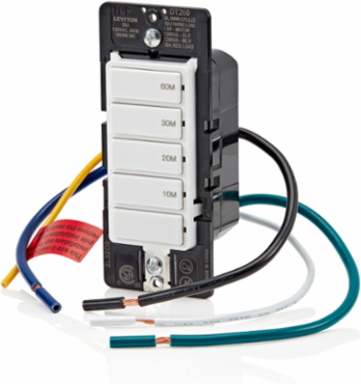

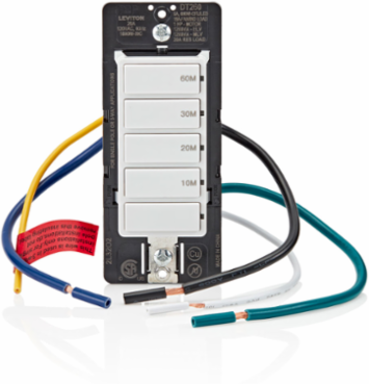

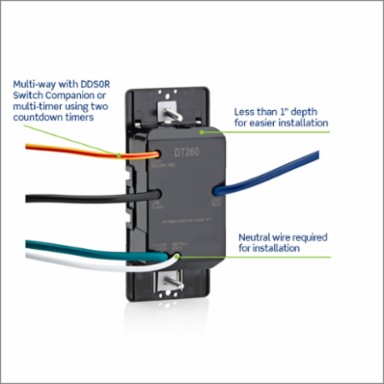

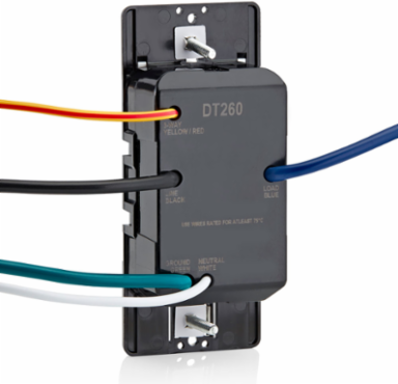

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
- Designed with load capacity to handle larger exhaust fans, pumps and fixtures

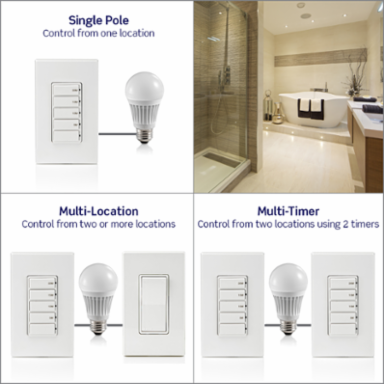

- Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT260 countdown timers
- Zero Cross turn-on technology to extend the life of the switch

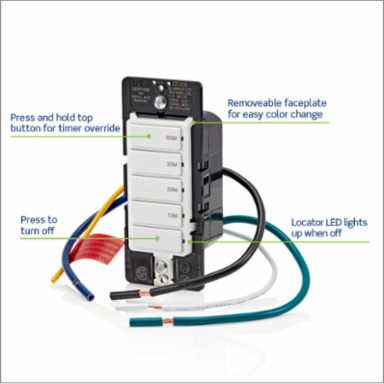

- Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

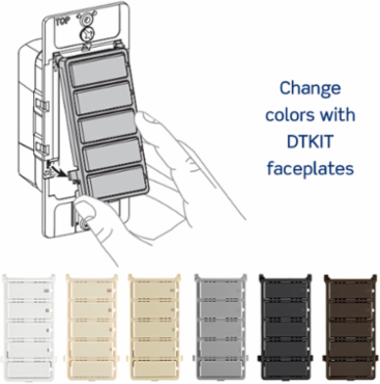

- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Ideal to use for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
- Do not use to control lights if there is no other light source in the space
- CONVENIENT – designed with load capacity to handle larger exhaust fans, pumps and fixtures
- ENERGY SAVING – turns off automatically when time expires
- FLEXIBLE – single pole, multi-way with DD0SR Switch Companion or multi-timer with two DT230 timers
- PRACTICAL – for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
- STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Amperage
- 20 A
- Color
- White
- Compatible Bulb Type
- LED | CFL | Incandescent | Halogen | Magnetic Low Voltage | Electronic Low Voltage | Fluorescent | Fan | Motor | Inductive | Resistive
- Faceplate Colors
- White | Ivory | Light Almond | Gray | Black | Brown
- Grade
- Residential
- Horsepower Rating
- 1 HP
- Neutral Required
- Yes
- Power Consumption
- <1 Watt
- Style
- Push Button
- Timer Options
- 60-Minute (10M, 20M, 30M, 60M)
- Voltage
- 120 VAC
- Warranty
- 5-Year
BrandDecora
Companion DeviceDD0SR | DT260
Device TypeTimer Switch
FunctionSingle-Pole (SP) | 3-Way | Multi-Location | Multi-Timer
GroundingYes
Mounting TypeIn-Wall
Optional FaceplatesDTKIT
Standards and CertificationsCSA | FCC | IC
TerminationLeads
Timer TypeCountdown
WallplateNot Included
Wattage Rating600W | 1800W | 1200VA
