Leviton DT102-1LW Decora 2-Hour Countdown Timer Switch, 15A, ½ HP, In-Wall, White
Leviton DT102-1LW Decora 2-Hour Countdown Timer Switch, 15A, ½ HP, In-Wall, White
- MPN: DT102-1LW
- UPC: 078477264294
- PPN: LEV-DT102-1LW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$54.09/ EA
Description

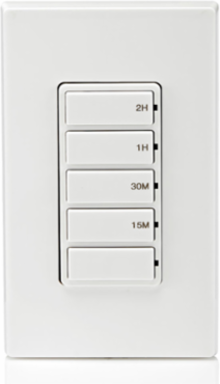

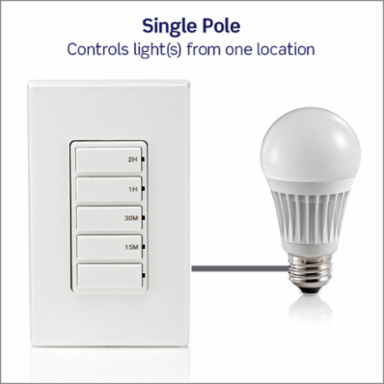

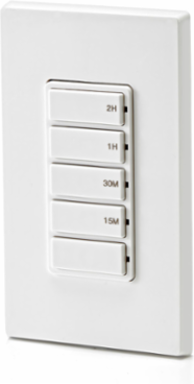

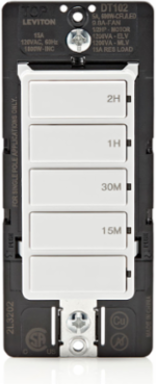

The Decora 2-Hour Countdown Timer Switch has 5 buttons with 15-minute, 30-minute, 1-hour and 2-hour preset time options and a manual off button. Single Pole, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8A Fan/Motor, 15A Resistive. Can be installed with or without a neutral wire, wallplate sold separately - White
Features

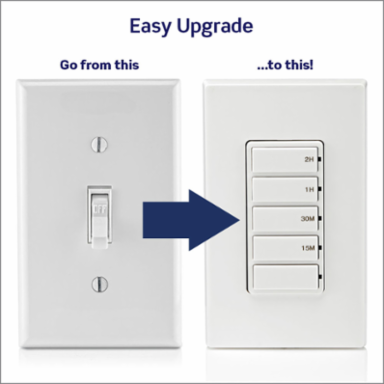

- Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally
- Four preset time option buttons 15-30 min, 1-2 hour with separate off button. Press time option to turn on and will automatically turn off when time expires
- 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, ½ HP/9.8 Amp Fan/Motor, 15A Resistive

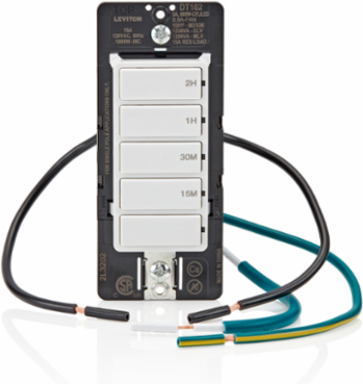

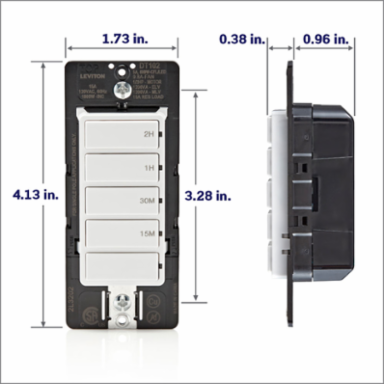

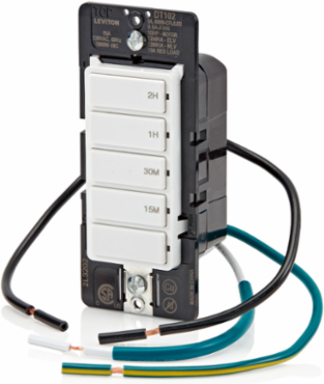

- Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws

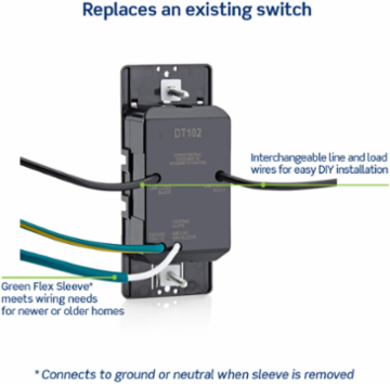

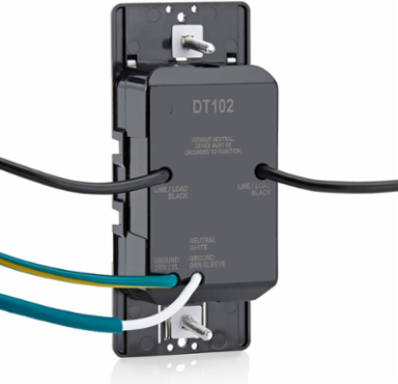

- Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox. A ground wire is required for installation
- DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
- Zero Cross turn-on technology to extend the life of the switch

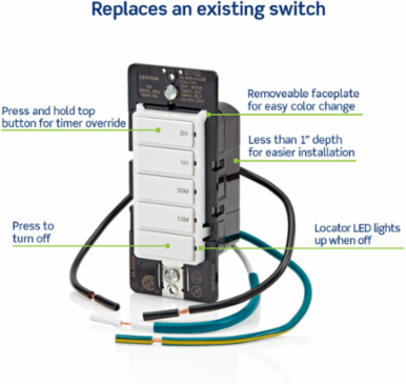

- Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

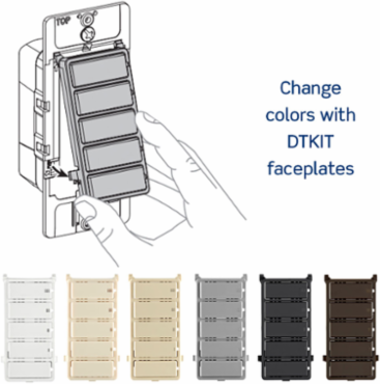

- Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
- Ideal to use for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
- Do not use to control lights if there is no other light source in the space
- CONVENIENT – replace your current wall switch with a countdown timer to automate fan/motor loads and lights. Four preset time buttons, press to turn on and automatically turns off when time expires
- EASY DIY INSTALL – slim depth for easier fit in wall box, interchangeable line and load wires to help prevent miswiring, and a Green Flex Sleeve that connects to a ground wire, or to a neutral wire when the sleeve is removed
- ENERGY SAVING – ensure lights and fans are not left on unintentionally
- PRACTICAL – for porch and landscape lighting, interior lights, ventilation fans, heat lamps, hot tubs, saunas, attic fans, and more
- STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown
Specifications
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Color
- White
- Device Type
- Timer Switch
- Function
- Single-Pole (SP)
- Grounding
- Yes
- Mounting Type
- In-Wall
- Optional Faceplates
- DTKIT
- Standards and Certifications
- CSA | FCC | IC
- Termination
- Leads
- Timer Type
- Countdown
- Wallplate
- Not Included
- Wattage Rating
- 600W | 1800W | 1200VA
BrandDecora
Compatible Bulb TypeLED | CFL | Incandescent | Halogen | Magnetic Low Voltage | Electronic Low Voltage | Fluorescent | Fan | Motor
Faceplate ColorsWhite | Ivory | Light Almond | Gray | Black | Brown
GradeResidential
Horsepower Rating1/2 HP
Neutral RequiredOptional
Power Consumption<1 Watt
StylePush Button
Timer Options2-Hour (15M, 30M, 1H, 2H)
Voltage120 VAC
Warranty5-Year
