Leviton DT202-1LW Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer

Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
Decora In-Wall Countdown Timer Switch, 20A, 1 HP, 2-Hour Timer
  • MPN: DT202-1LW
  • UPC: 078477264348
  • PPN: LEV-DT202-1LW

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$58.73/ EA

Description

Leviton’s 2-Hour Countdown Timer Switch has 5-buttons with 15-minute, 30-minute, 1-hour and 2-hour time options and a manual off button. The larger load capacity can handle larger fixtures and fans. Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT202 countdown timers. 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, 1 HP/16A Fan/Motor, 20A Resistive/16A Inductive. Requires a neutral wire for installation, wallplate sold separately - White

Features

  • Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally

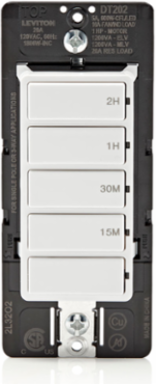

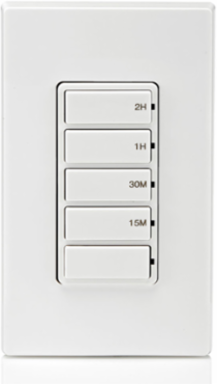

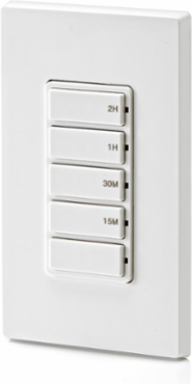

  • Four preset time option buttons 15-30 min, 1-2 hour with separate off button. Press time option to turn on and will automatically turn off when time expires
  • 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage, 1200 VA Electronic Low Voltage, 1200 VA Fluorescent, 1 HP/16 Amp Fan/Motor, 20A Resistive/16A Inductive

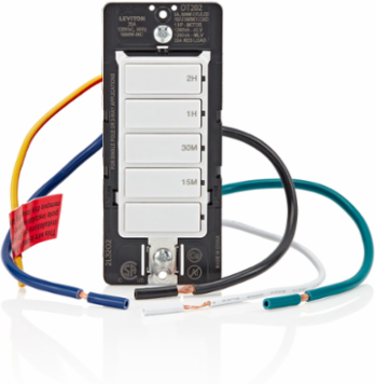

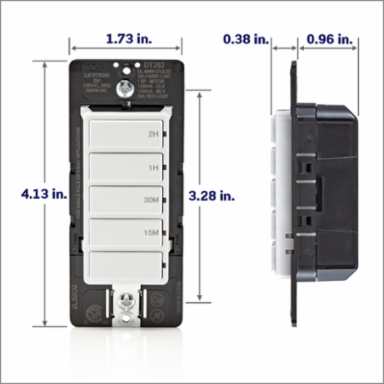

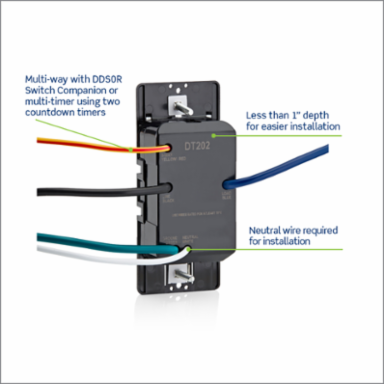

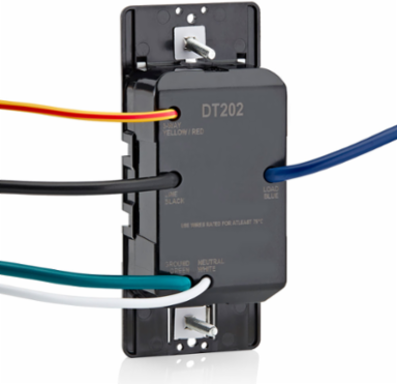

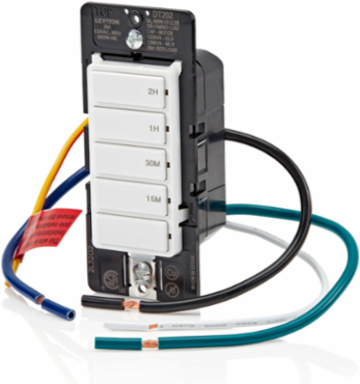

  • Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws
  • Designed with load capacity to handle larger exhaust fans, pumps and fixtures

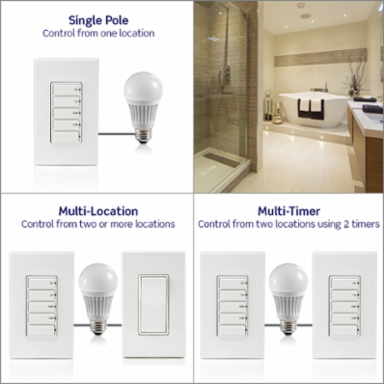

  • Single pole, multi-way using DD0SR Switch Companion or multi-timer using two DT202 countdown timers
  • Zero Cross turn-on technology to extend the life of the switch

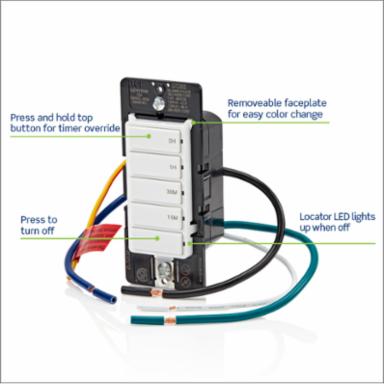

  • Manual override keeps load on for 24 hours. Override can be disabled by pressing one of the timer option buttons or off button

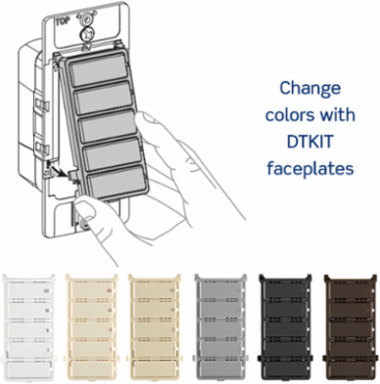

  • Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown (sold separately)
  • Ideal to use for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
  • Do not use to control lights if there is no other light source in the space
  • CONVENIENT – designed with load capacity to handle larger exhaust fans, pumps and fixtures
  • ENERGY SAVING – turns off automatically when time expires
  • FLEXIBLE – single pole, multi-way with DD0SR Switch Companion or multi-timer with two DT202 timers
  • PRACTICAL – for porch and landscape lighting, interior lights, bathroom exhaust fans, heat lamps, pool pumps, hot tubs, saunas, attic fans, and more
  • STYLISH – easily change the color using DTKIT faceplates available in white, ivory, light almond, gray, black and brown

Specifications

Product Features

Amperage
20 A
Color
White
Compatible Bulb Type
LED | CFL | Incandescent | Halogen | Magnetic Low Voltage | Electronic Low Voltage | Fluorescent | Fan | Motor | Inductive | Resistive
Faceplate Colors
White | Ivory | Light Almond | Gray | Black | Brown
Grade
Residential
Horsepower Rating
1 HP
Neutral Required
Yes
Power Consumption
<1 Watt
Style
Push Button
Timer Options
2-Hour (15M, 30M, 1H, 2H)
Voltage
120 VAC
Warranty
5-Year
BrandDecora
Companion DeviceDD0SR | DT202
Device TypeTimer Switch
FunctionSingle-Pole (SP) | 3-Way | Multi-Location | Multi-Timer
GroundingYes
Mounting TypeIn-Wall
Optional FaceplatesDTKIT
Standards and CertificationsCSA | FCC | IC
TerminationLeads
Timer TypeCountdown
WallplateNot Included
Wattage Rating600W | 1800W | 1200VA

Specifications

Country of Origin
China
RoHS CompliantFalse
