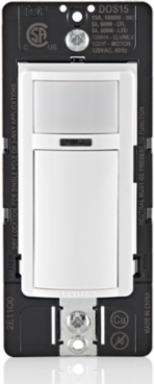

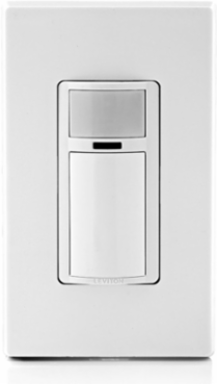

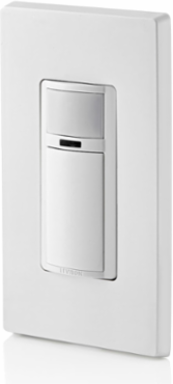

Leviton DOS15-1LZ Decora Occupancy Motion Sensor Light Switch, 15A, 180° Coverage, Auto-On/Manual-On
- MPN: DOS15-1LZ
- UPC: 078477471272
- PPN: LEV-DOS15-1LZ
CAD
$75.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

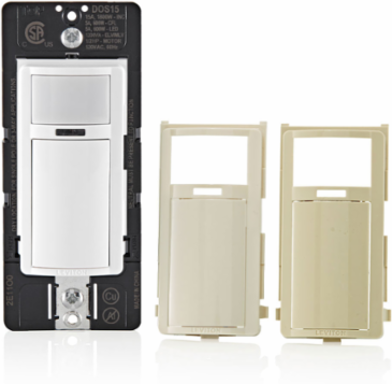

Decora Occupancy Motion Sensor Light Switch. 180° PIR automatic-on, automatic-off, single pole, 3-way or multi-location (multi-way) when used with DD0SR switch companions or multi-sensor with two DOS15 sensors, 600W LED/CFL, 1800W Inc/Halogen 1200VA ELV/MLV/FL, 1/2HP Motor, 15A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC – White with ivory and light almond faceplates included
Features

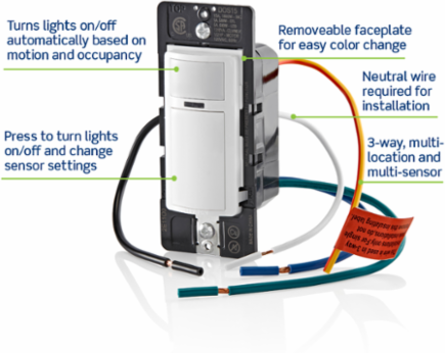

- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
- Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Florescent or Motor loads

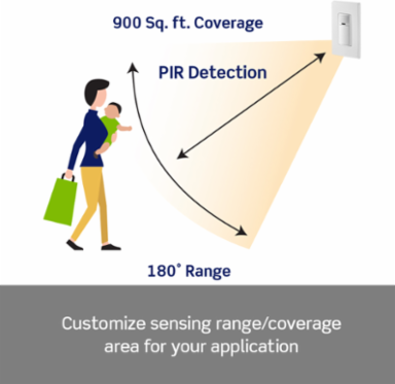

- Provides 180° Field-of-View, 900 sq. ft. of coverage

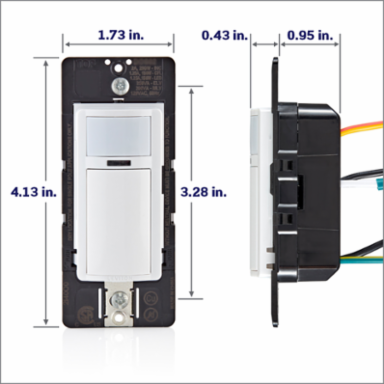

- Shallow design easily fits in the wallbox and can replace single pole switch

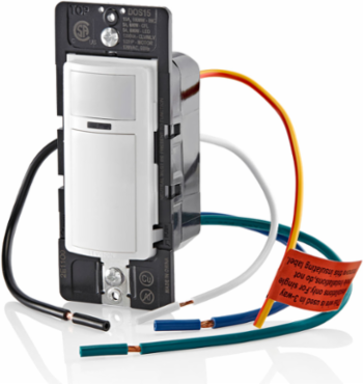

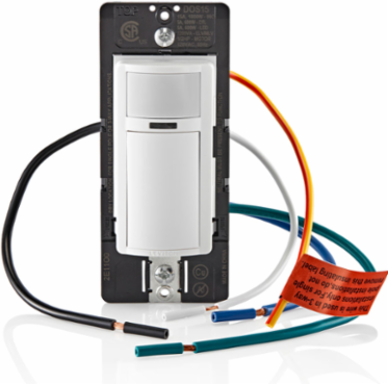

- Leaded terminals for easier installation
- Requires a neutral wire for installation

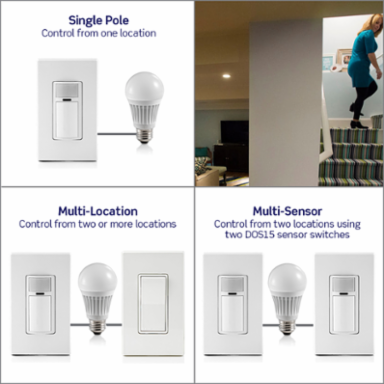

- Single pole, 3-way or multi-location (multi-way) when used with up to four (4) DD0SR-DLZ and/or up to nine (9) DD0SR-01Z switch companions
- Multi-sensor with two DOS15 sensors

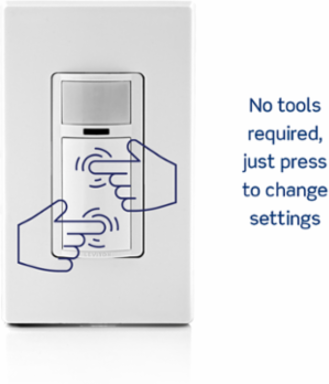

- Program settings without removing the wallplate or faceplate
- Low profile design blends in with walls for a discreet appearance
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC

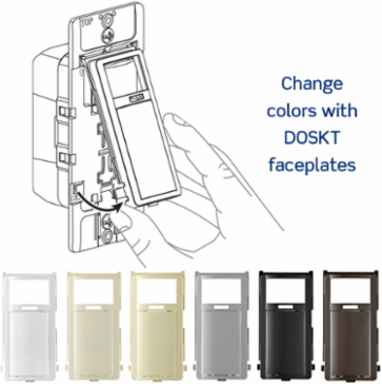

- Color change faceplates DOSKT are available in white, ivory, light almond, gray, black, brown
- Five-Year Limited warranty
- CONVENIENT – Automatically turns lights on/off based on motion. Provides 180° Field-of-View, 900 sq. ft. of coverage
- EASY TO INSTALL – Shallow design easily fits in the wallbox, a neutral wire is required for installation
- FLEXIBLE – Multi-sensor application where two sensors are needed for the coverage area, such as an “L-shaped” room
- VERSATILE – For higher wattage fixtures and exhaust fans. Can be set for vacancy (manual-on) switching
- STYLISH – Easily change the color using DOSKT faceplates available in white, ivory, light almond, gray, black and brown
Documentation & Downloads
Specifications
Additional
- Load Rating
- 600W LED/CFL, 1800W Incandescent/Halogen, 1/2 HP Motor, 1200VA ELV/MLV/Fluorescent, 15A Resistive
- Coverage Angle
- 180°
- Timer Delay Options
- 1, 5, 10, 20 minutes
- Sensor Technology
- Passive Infrared (PIR) Detection
- Pole
- 3
- Mounting Type
- Wall Switch
- Storage Temperature Range
- -20°C to 60°C
- Grade
- Residential
- LED Color
- Green and Red
- Compliance
- CSA, FCC, California Title 24, Part 6; RoHS False
Voltage120 VAC, 60 Hz
Coverage Area900 sq. ft.
Switching ModesAutomatic ON/Automatic OFF or Manual ON/Automatic OFF
Sensor TypeOccupancy
WiringNeutral Required
Operating Temperature Range0°C to 40°C
Relative Humidity0% to 95% non-condensing
ColorWhite, Ivory, Light Almond
Country of OriginChina
Warranty5-Year Limited
