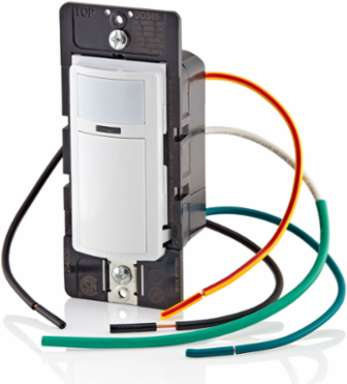

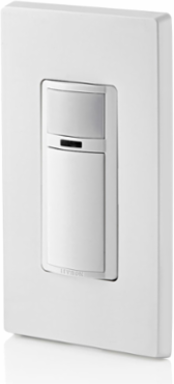

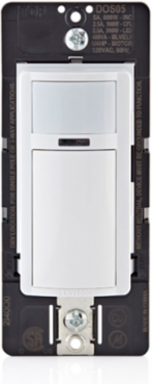

Leviton DOS05-1LZ Decora Motion Sensor Light Switch, 300W LED/CFL, 600W Incandescent, 900 Sq. Ft. Coverage
- MPN: DOS05-1LZ
- UPC: 078477572603
- PPN: LEV-DOS05-1LZ
CAD
$38.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Occupancy Motion Sensor Light Switch. 180° PIR automatic-on wallbox sensor, single pole or 3-way when used with a single pole or 3-way switch, 300W LED/CFL, 600W Incandescent/Halogen, 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, ¼ HP Motor, 5A Resistive, wallplate sold separately. Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC – White with ivory and light almond faceplates included
Features
- Ideal for pantries, closets, laundry rooms and basements
- Occupancy Sensor Mode default for Automatic ON/Automatic OFF operation. Can switch to Vacancy Mode for Manual ON/Automatic OFF
- Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage or Motor loads

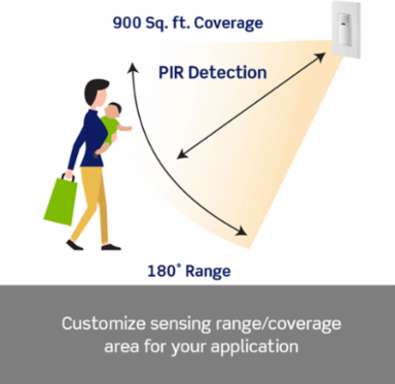

- Provides 180° Field-of-View, 900 sq. ft. of coverage

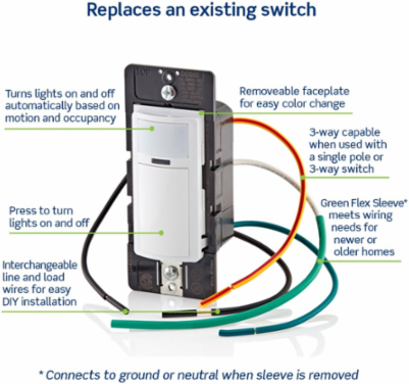

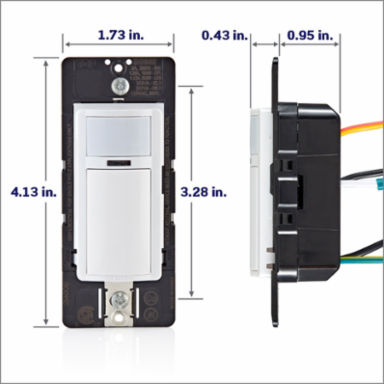

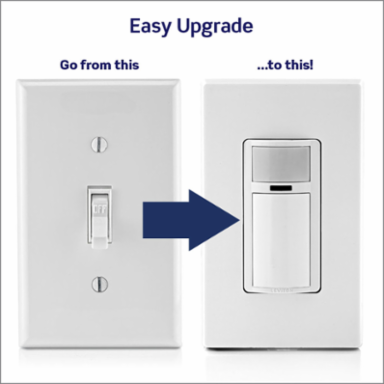

- Shallow design easily fits in the wallbox and can replace single pole switch

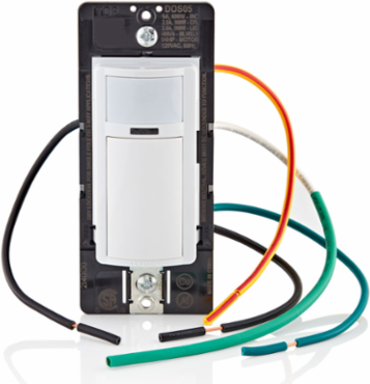

- Leaded terminals for easier installation

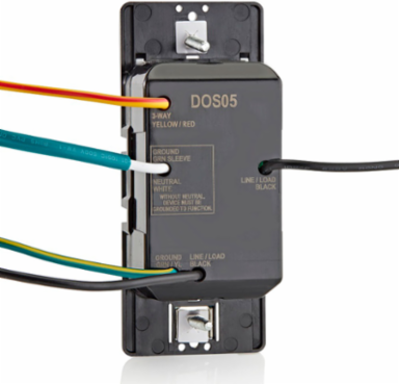

- Can be connected to a Neutral wire if present in the wallbox, or connected to ground wire if no Neutral wire is present in the wallbox
- Interchangeable line and load wires

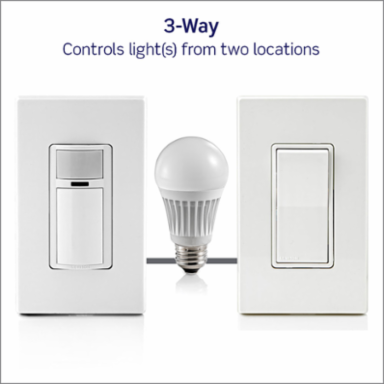

- Single pole or 3-way when used with a single pole or 3-way switch

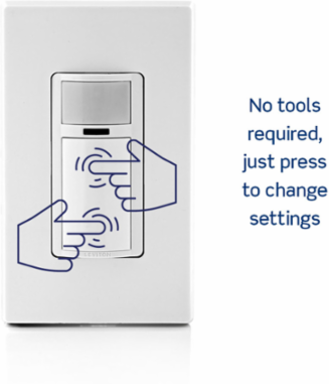

- Program settings without removing the wallplate or faceplate

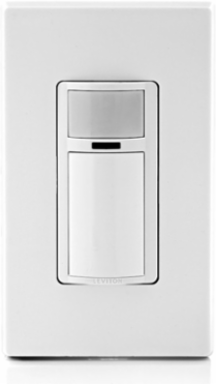

- Low profile design blends in with walls for a discreet appearance
- Ambient light override prevents sensor from switching the lights ON when there is ample natural sunlight
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with the California Title 24, Part 6, Automatic-off Controls and IECC

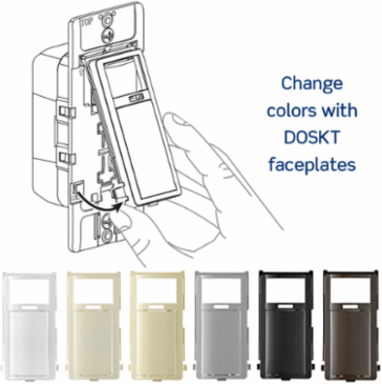

- Color change faceplates DOSKT are available in white, ivory, light almond, gray, black, brown
- Five-Year Limited warranty
- CONVENIENT – Automatically turns lights on/off based on motion. Provides 180° Field-of-View, 900 sq. ft. of coverage
- EASY TO INSTALL – Shallow design easily fits in the wallbox
- FLEXIBLE – Install with or w/out a neutral wire, ground required
- VERSATILE – Can be set for vacancy (manual-on) switching
- PRACTICAL – Perfect for garage, pantry, closet, basement and laundry room
- STYLISH – Easily change the color using DOSKT faceplates available in white, ivory, light almond, gray, black and brown
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Auto-ON/Auto-OFF | Yes |
|---|---|
| Color | White, Ivory, Light Almond |
| Device Type | Sensor |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |

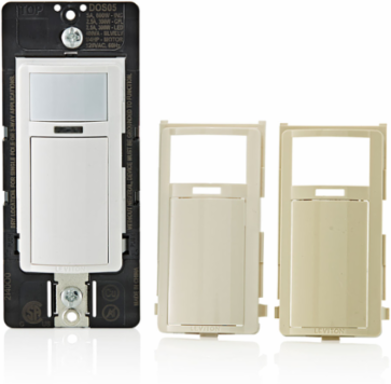

| Ordering Notes | Includes White, Light Almond and Ivory Color Change Kit |
| Sensor Technology | Passive Infrared |
| Standards and Certifications | CSA, FCC, Title 24 |
| Switch | Relay |
| Voltage | 120 VAC |
| Warranty | 5-Year Limited |
| California Title 24 | Yes |
|---|---|
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Grade | Residential |
| Load Rating | 300W LED/CFL, 600W Incandescent/Halogen, 1/4 HP, 400VA ELV, MLV, 5A Resistive |
| Neutral | Optional |
| Pole | 3 |
| Sensor Type | Occupancy |
| Style Name | Decora |
| Time Delay | 1M, 5M, 10M, 20M |
| Wallplate | Not Included |
| Wiring | Ground or Neutral Required |
